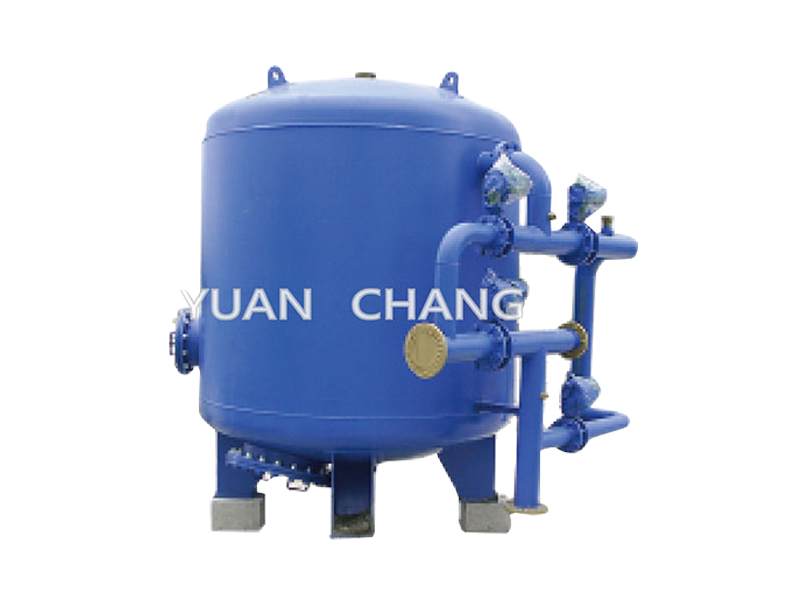

Automatic pressurized sand filter

(Fully Automatic Pressure-Type)

Automatic pressurized sand filter(SF-05) Type: SF-05 Automatic pressurized sand filter	Automatic pressurized sand filter(SF-08) Type: SF-08 Automatic pressurized sand filter	Automatic pressurized sand filter(SF-11) Type: SF-11 Automatic pressurized sand filter	Automatic pressurized sand filter(SF-14) Type: SF-14 Automatic pressurized sand filter
Automatic pressurized sand filter(SF-16) Type: SF-16 Automatic pressurized sand filter	Automatic pressurized sand filter(SF-20) Type: SF-20 Automatic pressurized sand filter	Automatic pressurized sand filter(SF-24) Type: SF-24 Automatic pressurized sand filter	Automatic pressurized sand filter(SF-28) Type: SF-28 Automatic pressurized sand filter
Automatic pressurized sand filter(SF-30) Type: SF-30 Automatic pressurized sand filter

Spec.		SF-05	SF-08	SF-11	SF-14	SF-16	SF-20	SF-24	SF-28	SF-30
Spec.		Model
Treatment Capacity(m³/hr)		2-6	5-15	10-30	15-45	20-60	30-90	45-135	61-180	70-210
Filtration area (cm²)		0.2	0.5	1	1.6	2.0	3.0	4.5	6.1	7.0
Inlet and Outlet Diameter(IN)		2"	2"	2"	2"	3"	3"	4"	4"	5"
Referance dimension(mm)	ø	500	800	1100	1400	1600	2000	2400	2800	3000
Referance dimension(mm)	H	1800	1800	1800	1800	1800	1800	1800	1800	1800
Reference weight (kgs)		450	1090	1910	2890	3700	5590	8120	10840	12390
