Belt Filter Presses(TA3 Series)

(Conditioning + gravity filter belt thickening + double filter belt) → triple filter belt)

Belt Filter Presses (TA3-750) Type: TA3-750 (Conditioning + gravity filter belt thickening + double filter belt) → triple filter belt	Belt Filter Presses (TA3-1000) Type: TA3-1000 (Conditioning + gravity filter belt thickening + double filter belt) → triple filter belt	Belt Filter Presses (TA3-1250) Type: TA3-1250 (Conditioning + gravity filter belt thickening + double filter belt) → triple filter belt	Belt Filter Presses (TA3-1500) Type: TA3-1500 (Conditioning + gravity filter belt thickening + double filter belt) → triple filter belt

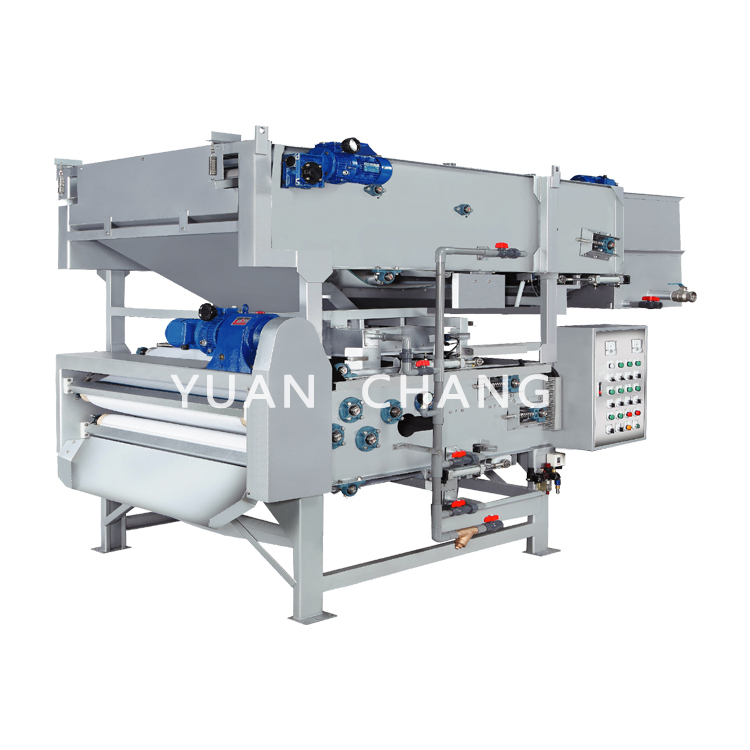

Belt Filter Presses (TA3-1500L) Type: TA3-1500L (Conditioning + gravity filter belt thickening + double filter belt) → triple filter belt	Belt Filter Presses (TA3-2000) Type: TA3-2000 (Conditioning + gravity filter belt thickening + double filter belt) → triple filter belt

Spec.			TA3-750	TA3-1000	TA3-1250	TA3-1500	TA3-1500L	TA3-2000
Spec.			Model
Belt width (mm)			750	1000	1250	1500	1500	2000
Low consistency (S.S 0.4~0.8%)	Capacity (m³ /hr)		5.5-9.0	8.5-12.5	12-17	13.5-20	19-27.5	26-39
Low consistency (S.S 0.4~0.8%)	Absolute dryness D.S.(kg/hr)		22-54	34-75	48-102	54-120	76-165	104-234
Medium concentration (S.S 0.8~1.5%)	Capacity (m³ /hr)		4.5-7.0	7.0-10	10-13.5	12-16.5	16-22	22-32
Medium concentration (S.S 0.8~1.5%)	Absolute dryness D.S.(kg/hr)		36-83	56-116	80-158	96-188	128-255	176-368
Power usage (HP)	Belt driver (no step speed)		1/2	1/2	1/2	1/2	1/2	3/4
	Conditioning mixer		1/2	1/2	3/4	3/4	1/2	1/2
	Belt thickener (no step speed)		1/2	1/2	1/2	1/2	3/4	3/4
Machine material	Standard		Stainless steel SUS304
Machine material	Optional		Stainless steel SUS316 / 316L
Reference dimensions(mm)		L	3650	3750	3800	3800	4300	4400
		W	1400	1650	1900	2150	2150	2650
		H	2600	2600	2650	2650	2600	2650
Reference weight (kgs)			1010	1180	1450	1750	2140	2600
