Belt Filter Presses(TB series)

(Conditioning + drum thickening + double filter belt)

Belt Filter Presses (TB-500) Type: TB-500 (Conditioning + drum thickening + double filter belt)	Belt Filter Presses (TB-750) Type: TB-750 (Conditioning + drum thickening + double filter belt)	Belt Filter Presses (TB-1000) Type: TB-1000 (Conditioning + drum thickening + double filter belt)	Belt Filter Presses (TB-1250) Type: TB-1250 (Conditioning + drum thickening + double filter belt)

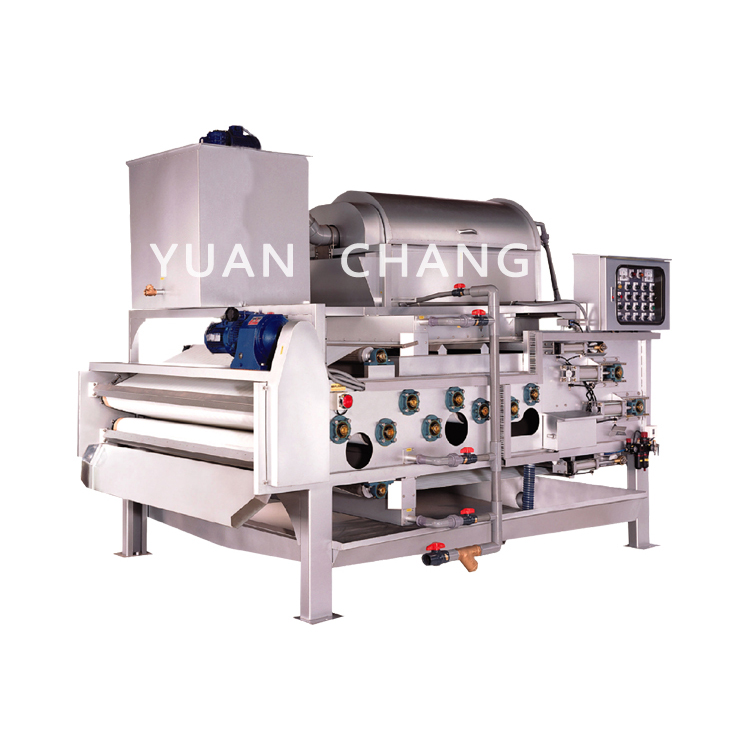

Belt Filter Presses (TB-1500) Type: TB-1500 (Conditioning + drum thickening + double filter belt)	Belt Filter Presses (TB-1500L) Type: TB-1500L (Conditioning + drum thickening + double filter belt)	Belt Filter Presses (TB-2000) Type: TB-2000 (Conditioning + drum thickening + double filter belt)

Spec.			TB-500	TB-750	TB-1000	TB-1250	TB-1500	TB-1500L	TB-2000
Spec.			Model
Belt width (mm)			500	750	1000	1250	1500	1500	2000
Capacity (m³ /hr) Influent concentration (S.S 1.5~2.5%)			3.0~5.2	4.5~7.5	6.5~10.5	7.5~12.5	9.5~16	12~20.5	18~30
Absolute dryness D.S. (kg/hr)			45~78	68~113	98~158	113~188	143~240	180~308	270~450
Power usage (HP)	Belt driver (no step speed)		1/2	1/2	1/2	1/2	1/2	1	1
	Conditioning mixer		1/4	1/4	1/2	1/2	3/4	3/4	1
	Drum thickener		1/4	1/4	1/2	1/2	1/2	3/4	3/4
Machine material	Standard		Stainless steel SUS304
Machine material	Optional		Stainless steel SUS316 / 316L
Reference dimensions(mm)		L	2600	2600	2900	2900	2900	3200	3450
		W	1100	1300	1550	1850	2150	2150	2750
		H	2500	2600	2600	2700	2800	2900	3200
Reference weight (kgs)			780	970	1150	1320	1550	1750	2650
