Belt Filter Presses(TB3 Series)

(Conditioning + gravity filter belt thickening + double filter belt)→Triple filter belt

Belt Filter Presses (TB3-750) Type: TB3-750 (Conditioning + gravity filter belt thickening + double filter belt) →Triple filter belt	Belt Filter Presses (TB3-1000) Type: TB3-1000 (Conditioning + gravity filter belt thickening + double filter belt) →Triple filter belt	Belt Filter Presses (TB3-1250) Type: TB3-1250 ( Conditioning + gravity filter belt thickening + double filter belt) →Triple filter belt	Belt Filter Presses (TB3-1500) Type: TB3-1500 ( Conditioning + gravity filter belt thickening + double filter belt) →Triple filter belt

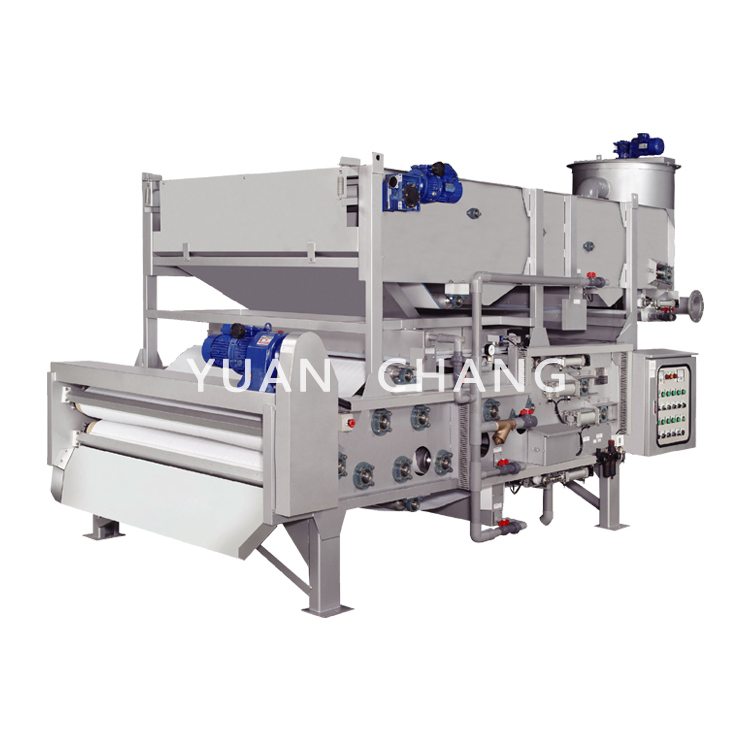

Belt Filter Presses (TB3-1500L) Type: TB3-1500L (Conditioning + gravity filter belt thickening + double filter belt) →Triple filter belt	Belt Filter Presses (TB3-2000) Type: TB3-2000 (Conditioning + gravity filter belt thickening + double filter belt) →Triple filter belt

Spec.			TB3-750	TB3-1000	TB3-1250	TB3-1500	TB3-1500L	TB3-2000
Spec.			Model
Belt width (mm)			750	1000	1250	1500	1500	2000
Low consistency (S.S 0.4~0.8%)	Capacity (m³ /hr)		9.0-12	13.5-17	17-20	21-26	25-33	35-45
Low consistency (S.S 0.4~0.8%)	Absolute dryness D.S.(kg/hr)		35-70	55-100	68-120	85-155	100-198	140-270
Medium concentration (S.S 0.8~1.5%)	Capacity (m³ /hr)		7-10	10-13.5	12.5-16.5	16-20	20.5-25	30-35
Medium concentration (S.S 0.8~1.5%)	Absolute dryness D.S.(kg/hr)		70-113	100-160	110-188	140-240	160-300	240-450
Power usage (HP)	Belt driver (no step speed)		1/2	1/2	1/2	1/2	1	1
	Conditioning mixer		1/4	1/4	1/4	1/2	1/2	3/4
	Belt thickener (no step speed)		1/2	1/2	1/2	1/2	3/4	3/4
Machine material	Standard		Stainless steel SUS304
Machine material	Optional		Stainless steel SUS316 / 316L
Reference dimensions(mm)		L	4050	4250	4250	4300	5100	5150
		W	1370	1620	1900	2150	2150	2700
		H	2450	2400	2550	2550	2650	2800
Reference weight (kgs)			1120	1300	1540	1720	2150	2900
