Belt Filter Presses(TE Series)

(Conditioning + drum concentration + double filter belt)

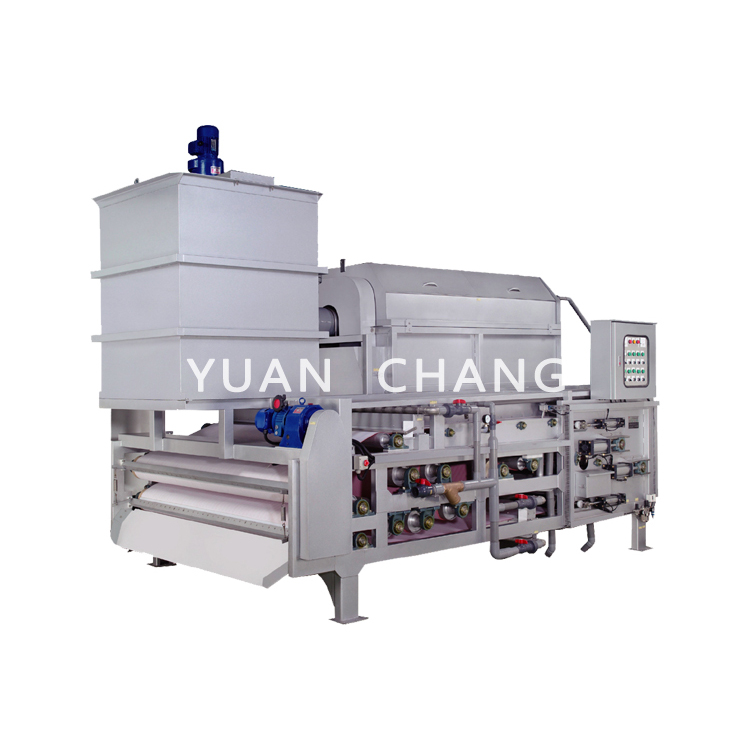

Belt Filter Presses (TE-1000) Type: TE-1000 (Conditioning + drum concentration + double filter belt)	Belt Filter Presses (TE-1250) Type: TE-1250 (Conditioning + drum concentration + double filter belt)	Belt Filter Presses (TE-1500) Type: TE-1500 (Conditioning + drum concentration + double filter belt)	Belt Filter Presses (TE-2000) Type: TE-2000 (Conditioning + drum concentration + double filter belt)
Belt Filter Presses (TE-2000L) Type: TE-2000L (Conditioning + drum concentration + double filter belt)	Belt Filter Presses (TE-2500) Type: TE-2500 (Conditioning + drum concentration + double filter belt)	Belt Filter Presses (TE-2500L) Type: TE-2500L (Conditioning + drum concentration + double filter belt)

Spec.			TE-1000	TE-1250	TE-1500	TE-2000	TE-2000L	TE-2500	TE-2500L
Spec.			Model
Belt width (mm)			1000	1250	1500	2000	2000	2500	2500
Capacity (m³ /hr) Influent concentration(S.S 1.5~2.5%)			9.5~15.5	12.5~20.5	18.5~30.5	24.5~41	30~50	32.5~54	38.5~64
Absolute dryness D.S. (kg/hr)			143~233	188~308	278~458	368~615	450~750	488~810	578~960
Power usage (HP)	Belt driver (no step speed)		1/2	1/2	1	1	2	2	3
	Conditioning mixer		3/4	3/4	1	1	3/4 x 2	3/4 x 2	1 x 2
	Drum thickener		1/2	3/4	3/4	3/4	3/4 x 2	3/4 x 2	3/4 x 2
Machine material	Standard		Stainless steel SUS304
Machine material	Optional		Stainless steel SUS316 / 316L
Reference dimensions(mm)		L	3350	3500	4250	4600	5400	4700	5500
		W	1700	1950	2300	2800	2850	3350	3350
		H	2700	2800	3200	3300	3450	3300	3750
Reference weight (kgs)			1550	1620	2450	2950	3900	3800	4300
