Belt Filter Presses(TE3 Series)

(Conditioning + gravity filter belt thickening + double filter belt)→Triple filter belt

Belt Filter Presses (TE3-1000) Type: TE3-1000 (Conditioning + gravity filter belt thickening + double filter belt) →Triple filter belte	Belt Filter Presses (TE3-1250) Type: TE3-1250 (Conditioning + gravity filter belt thickening + double filter belt) →Triple filter belte	Belt Filter Presses (TE3-1500) Type: TE3-1500 (Conditioning + gravity filter belt thickening + double filter belt) →Triple filter belte	Belt Filter Presses (TE3-2000) Type: TE3-2000 (Conditioning + gravity filter belt thickening + double filter belt) →Triple filter belte

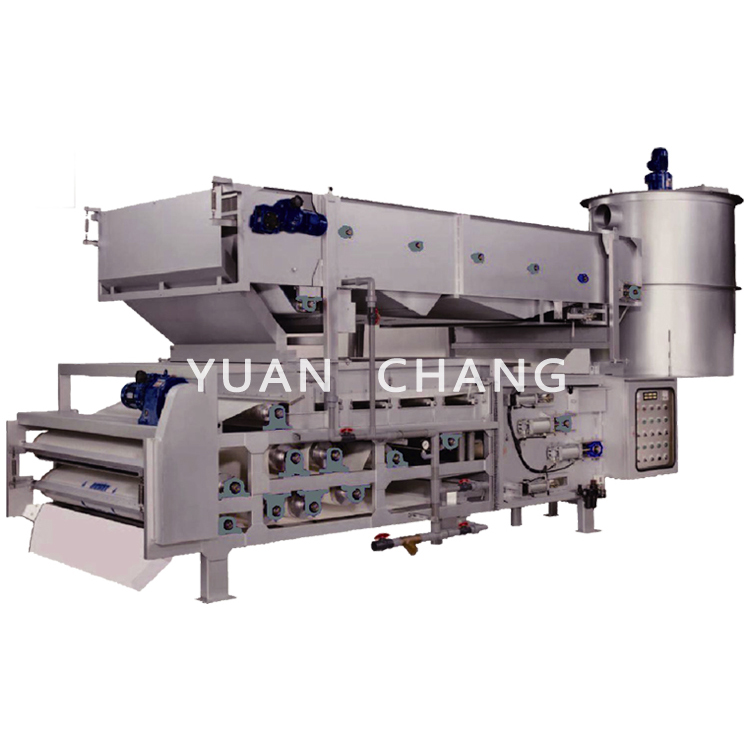

Belt Filter Presses (TE3-2000L) Type: TE3-2000L (Conditioning + gravity filter belt thickening + double filter belt) →Triple filter belte	Belt Filter Presses (TE3-2500) Type: TE3-2500 (Conditioning + gravity filter belt thickening + double filter belt) →Triple filter belte	Belt Filter Presses (TE3-2500L) Type: TE3-2500L (Conditioning + gravity filter belt thickening + double filter belt) →Triple filter belte

Spec.			TE3-1000	TE3-1250	TE3-1500	TE3-2000	TE3-2000L	TE3-2500	TE3-2500L
Spec.			Model
Belt width (mm)			1000	1250	1500	2000	2000	2500	2500
Low consistency (S.S 0.4~0.8%)		Capacity (m³ /hr)	19~25	26~35	38~50	50~65	60~80	65~85	75~100
Low consistency (S.S 0.4~0.8%)		Absolute dryness D.S.(kg/hr)	76~150	104~210	152~300	200~390	240~480	260~510	300~600
Medium concentration(S.S 0.8~1.5%)		Capacity (m³ /hr)	15.5~19	20.5~26	30.5~38	41~50	50~60	54~65	64~75
Medium concentration(S.S 0.8~1.5%)		Absolute dryness D.S.(kg/hr)	124~233	164~308	244~458	328~615	400~750	432~810	512~960
Power usage (HP)	Belt driver (no step speed)		1/2	1/2	1	1	2	2	3
	Conditioning mixer		1/4	1/2	3/4	3/4	3/4	3/4	3/4
	Belt thickener (no step speed)		1/2	1/2	3/4	3/4	1	1	1
Machine material	Standard		Stainless steel SUS304
Machine material	Optional		Stainless steel SUS316 / 316L
Reference dimensions(mm)		L	4800	4900	5800	5900	7000	6300	7450
		W	1700	1950	2250	2800	3000	3350	3350
		H	2800	2900	3100	3100	3500	3350	3650
Base dimensions (mm)		L1 x W1	4000x2400	4000x2400	4750x2500	4750x2500	5900x2900	5150x2650	6100x3100
Base dimensions (mm)		L2 x W1	2578x1410	2578x1660	3350x1940	3350x2440	4065x2440	3350x2940	4065x2940
Reference weight (kgs)			1750	2050	2800	3010	4300	4100	4700
