Wastewater Continuous Sand Filter

(Fully Automatic Continuous-Flow Operation)

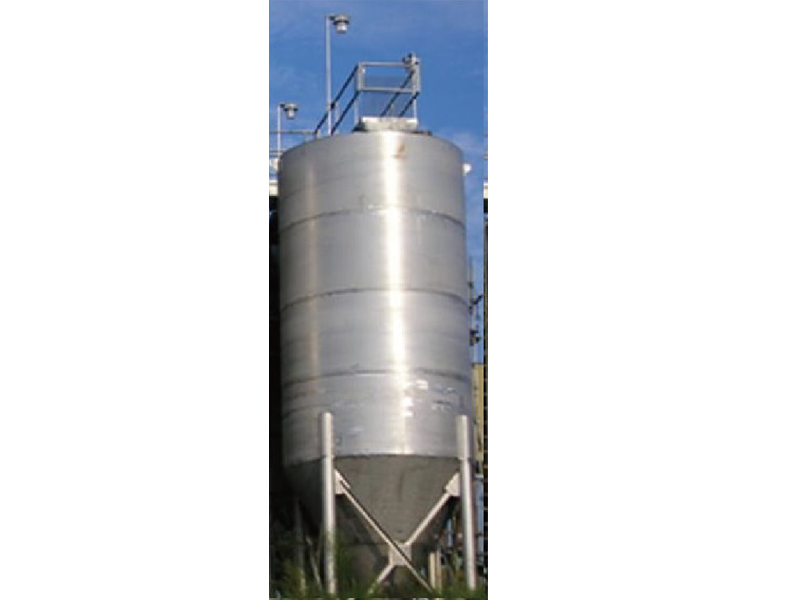

Automatic continuous flow sand bed filter equipment SD Series(SD-5) Type: SD-5 (single machine model)	Automatic continuous flow sand bed filter equipment SD Series(SD-10) Type: SD-10 (single machine model)	Automatic continuous flow sand bed filter equipment SD Series(SD-12) Type: SD-12 (single machine model)	Automatic continuous flow sand bed filter equipment SD Series(SD-15) Type: SD-15 (single machine model)

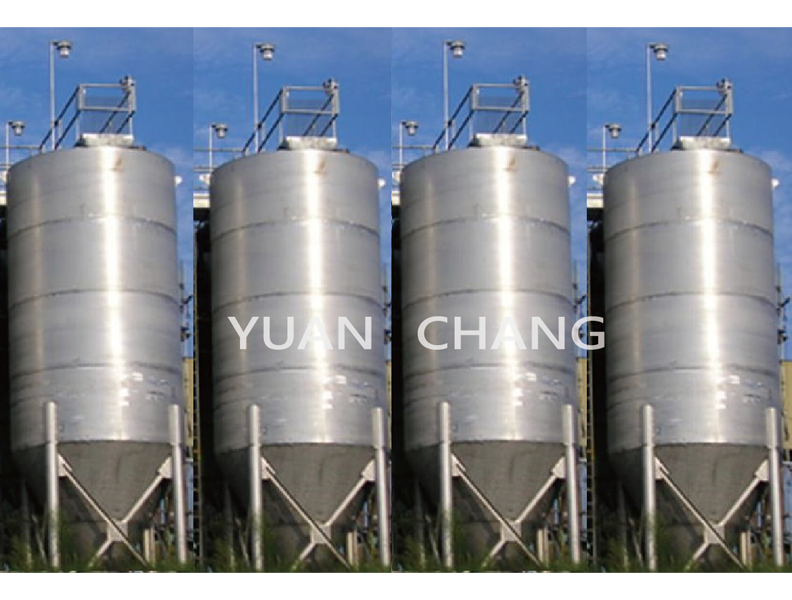

Automatic continuous flow sand bed filter equipment SD Series(SD-20) Type: SD-20 (single machine model)	Automatic continuous flow sand bed filter equipment SD Series(SDD-30) Type: SDD-30 (Multiple sets of parallel type))	Automatic continuous flow sand bed filter equipment SD Series(SDD-40) Type: SDD-40 (Multiple sets of parallel type))	Automatic continuous flow sand bed filter equipment SD Series(SDD-50) Type: SDD-50 (Multiple sets of parallel type))
Automatic continuous flow sand bed filter equipment SD Series(SDD-70) Type: SDD-70 (Multiple sets of parallel type))	Automatic continuous flow sand bed filter equipment SD Series(SDD-100) Type: SDD-100 (Multiple sets of parallel type))	Automatic continuous flow sand bed filter equipment SD Series(SDD-170) Type: SDD-170 (Multiple sets of parallel type))	Automatic continuous flow sand bed filter equipment SD Series(SDD-250) Type: SDD-250 (Multiple sets of parallel type))

Spec.		SD-5	SD-10	SD-12	SD-15	SD-20
Spec.		Model
Treatment Capacity(m³/hr)		3-5	7.5-10	9-12	11.5-15	15-20
Filtration area(m²)		0.5	1.0	1.2	1.5	2.0
Referance dimension(mm)	ø	800	1150	1250	1400	1600
	H1	3000	3000	3000	3000	3000
	H2	4000	4000	4000	4000	4000
Reference weight (kgs)		2720	4820	5600	6840	8300

Spec.		SDD-30	SDD-40	SDD-50	SDD-70	SDD-100	SDD-170	SDD-250
Spec.		Model
Treatment Capacity(m³/hr)		18-30	24-40	30-50	42-70	70-100	102-170	150-250
Filtration area(m²)		3	4	5	7	10	17	25
Air stripping sand washing room group		2	2	3	4	6	10	14
Referance dimension(mm)	L	Depending on the arrangement of the site
	W	Depending on the arrangement of the site
	H1	3000	3000	3000	3000	3000	3000	3000
	H2	4000	4000	4000	4000	4000	4000	4000
Reference weight (kgs)		13680	16600	22500	30000	45000	73500	103500
