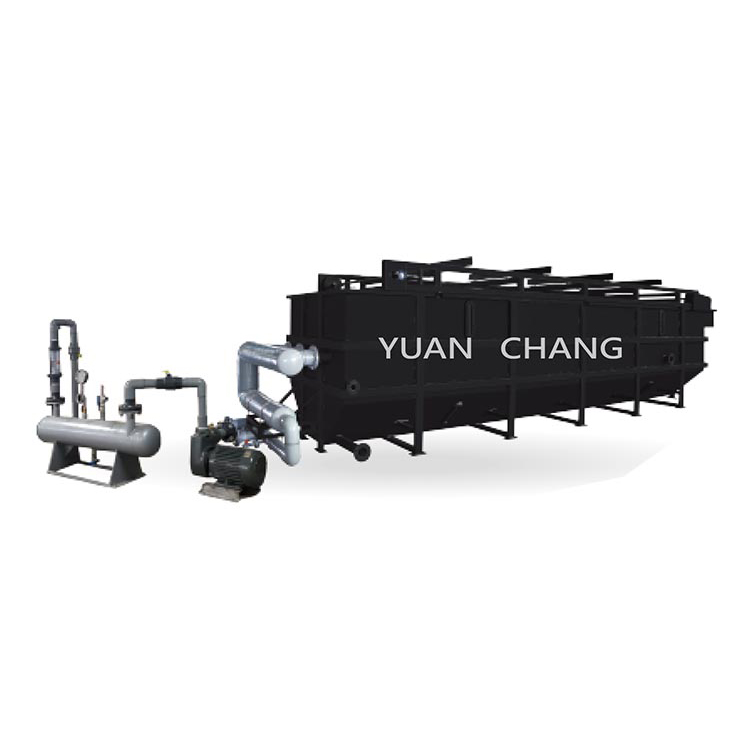

Air flotation equipment(DAR-150)
Type: DAR-150 (Rectangular tank)
Rectangular tank
Machine outline diagram
Standard specifications (Contact for customized)
|
|
DAR-150 |
| Treating capacity (m³ /hr) Influent concentration (S.S0.1~0.3%) |
100~150 |
| Concentrated sludge water content(%) | 1~3 |
| Power usage (HP) |
|
| Mud dial driver(constant speed) | 1 x 2 |
| Emulsified water pressurized pump(Optional) | Depends on the SS concentration of the water quality of the case |
| Main tank body and air dissolution tank material |
|
| Standard | Contact parts SUS304 + externally reinforced SS400 + Epoxy Epoxy anti-corrosion treatment |
| Optional | All stainless steel SUS304、SUS316 |
| Floating tank-Referance dimension(mm) |
|
| L | 12000 |
| W | 3700 |
| H | 3600 |
| Air soluble barrel-Referance dimension(mm) |
|
| (Φ) x L | 485 x 2300 |
| W | 610 |
| H | 1150 |
Remarks：
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
- The piping belongs to the on-site pipeline configuration project.
