Air flotation equipment(DAL Series)

(Shallow air flotation)

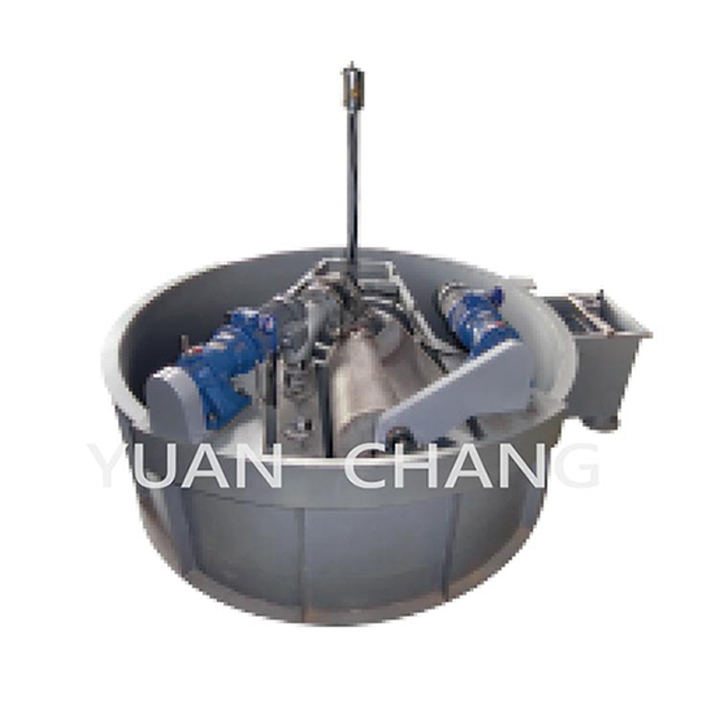

Air flotation equipment(DAL-20) Type: DAL-20 Shallow air flotation equipment	Air flotation equipment(DAL-30) Type: DAL-30 Shallow air flotation equipment	Air flotation equipment(DAL-40) Type: DAL-40 Shallow air flotation equipment	Air flotation equipment(DAL-50) Type: DAL-50 Shallow air flotation equipment
Air flotation equipment(DAL-75) Type: DAL-75 Shallow air flotation equipment	Air flotation equipment(DAL-100) Type: DAL-100 Shallow air flotation equipment	Air flotation equipment(DAL-150) Type: DAL-150 Shallow air flotation equipment	Air flotation equipment(DAL-200) Type: DAL-200 Shallow air flotation equipment
Air flotation equipment(DAL-250) Type: DAL-250 Shallow air flotation equipment

Spec.			DAL-20	DAL-30	DAL-40	DAL-50	DAL-75	DAL-100	DAL-150	DAL-200	DAL-250
Spec.			Model
Treating capacity (m³ /hr) Influent concentration (S.S0.1~0.3%)			15~20	25~30	30~40	40~50	60~75	80~100	120~150	160~200	200~250
Concentrated sludge water content(%)			2~5
Power usage (HP)	Drive machine (no step change)		1/2	1/2	1/2	1/2	1/2	1	1	2	3
	Scraper(no step change)		1/2	1/2	3/4	1	1	2	2	2	3
	Emulsified water pressurized pump(Optional)		Depends on the SS concentration of the water quality of the case
Main tank body and air dissolution tank material		Standard	Contact parts SUS304 + externally reinforced SS400 + Epoxy Epoxy anti-corrosion treatment
Main tank body and air dissolution tank material		Optional	All stainless steel SUS304、SUS316
Reference machine dimensions (mm)	Floating tank	Ａ(Φ)	2200	240	3000	3500	4200	5000	6000	7000	8100
		H	900	900	900	900	900	900	950	950	950
		H1	650	650	650	650	650	650	700	700	700
	Air soluble barrel	(Φ) x L	250x1300	250x1300	300x1500	300x1800	400x2400	400x2400	500x3000	500x3000	500x3800
