Automatic bar screen(YC1 Series)

(back rack type‐small/medium slag amount)

Automatic Bar Screen(YC1-30) Type: YC1-30 (back rack type‐small/medium slag amount)	Automatic Bar Screen(YC1-45) Type: YC1-45 (back rack type‐small/medium slag amount)	Automatic Bar Screen(YC1-60) Type: YC1-60 (back rack type‐small/medium slag amount)	Automatic Bar Screen (YC1-60L) Type:YC1-60L (back rack type‐small/medium slag amount)

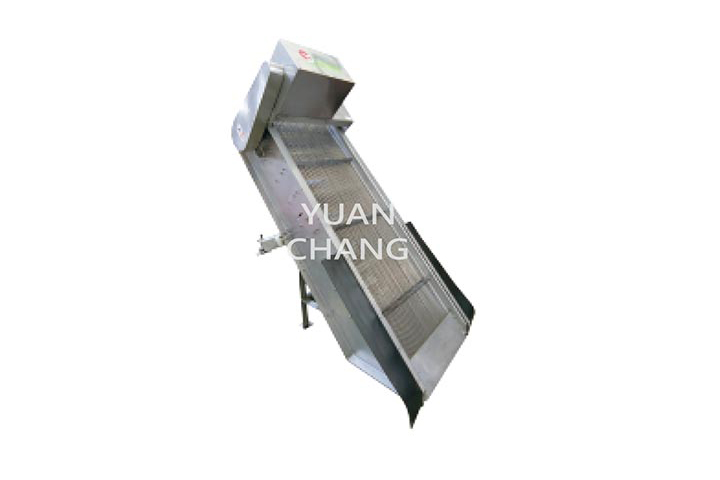

Automatic Bar Screen (YC1-90) Type: YC1-90 (back rack type‐small/medium slag amount)

Spec.		YC1-30			YC1-30			YC1-30			YC1-45			YC1-45
Spec.		Model
Bar spacing(mm)		4	6	8	4	6	8	4	6	8	4	6	10	4	6	10
Capaclty(water) (m³ /hr)		120	156	181	190	240	268	255	318	363	408	508	852	615	767	1267
Effective screen width W1 (mm)		300			450			600			600			900
Machine bottom width W2 (mm)		495			645			795			795			1095
Channel width W3 (mm)		540			690			840			840			1140
Effective water depth H1 (mm)		500			500			570			800			800
Channel depth H2 (mm)		570			570			870			870			870
Installation angle		50°
Bar screen drive (HP)		1/4			1/4			1/4			1/2			1/2
Machine material	Standard	Stainless Steel (SUS304)
Machine material	Optional	Stainless steel (SUS316) 、Other special materials
Reference machine dimensions (mm)	L	1350			1350			1110			1110			1650
	W	810			960			1100			1100			1410
	H	1350			1350			1350			1700			1700
Reference weight (kgs)		150			190			220			280			350
