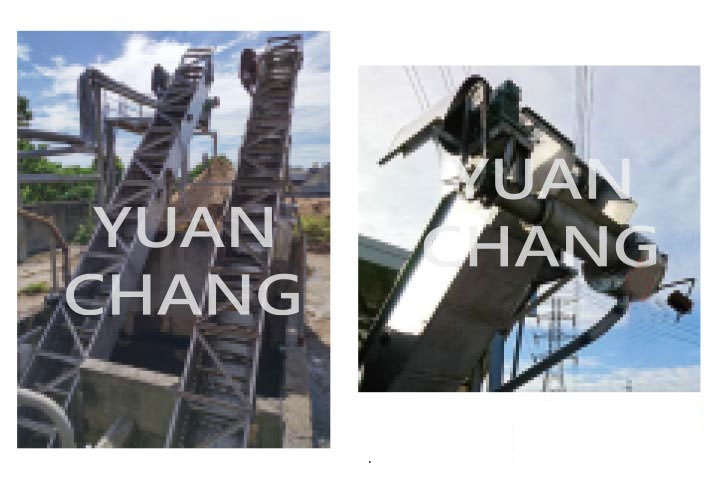

Automatic bar screen(YCＷ Series)

(paddle wheel type)

Spec.		YCW-42					YCW-60
Spec.		Model
Separation mesh aperture(mm)		1	1.5	2	3	5	1	1.5	3	3	5
Capaclty(water) (m³ /hr)		285	410	370	410	580	400	580	525	580	820
Effective screen width W1 (mm)		420					600
Machine bottom width W2 (mm)		530					690
Channel width W3 (mm)		730					890
Effective water depth H1 (mm)		The treatment volume is calculated by the water depth of 1M
Channel depth H2 (mm)		Depends on the needs of the site(general 0.8~1M)
Installation depth H3(mm)		600(Channel digging depth)
Slag discharge height H4 (mm)		Depending on the needs of the machine(Suggest 1.2~1.5M)
Bar screen drive(HP)		1					2
Installation angle		35°~45°
Overgate flow speed(M/s)		0.5~1.0
Machine material	Standard	Stainless Steel (SUS304)
Machine material	Optional	Stainless steel (SUS316) 、Other special materials
Reference machine dimensions (mm)	L	2400/3600/4800/6000/7200/9000 Others can be customized according to the site environment
	W	1020					1300
	H	Depending on the needs of the machine
Reference weight (kgs)		Depending on the needs of the machine
