CD Series-Sludge dryer

Sludge dryer (CD-100) Type: CD-100 (low temperature dehumidification - continuous treatment)	Sludge dryer (CD-200) Type: CD-200 (low temperature dehumidification - continuous treatment)	Sludge dryer (CD-300) Type: CD-300 (low temperature dehumidification - continuous treatment)	Sludge dryer (CD-400) Type: CD-400 (low temperature dehumidification - continuous treatment)

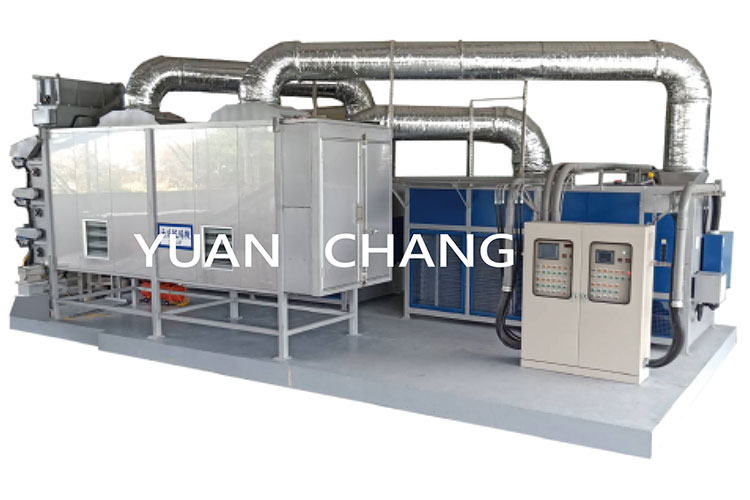

Sludge dryer (CD-500) Type: CD-500 (low temperature dehumidification - continuous treatment)	Sludge dryer (CD-750) Type: CD-750 (low temperature dehumidification - continuous treatment)	Sludge dryer (CD-1000) Type: CD-1000 (low temperature dehumidification - continuous treatment)	Sludge dryer (CD-1500) Type: CD-1500 (low temperature dehumidification - continuous treatment)
Sludge dryer (CD-2000) Type: CD-2000 (low temperature dehumidification - continuous treatment)	Sludge dryer (CD-3000) Type: CD-3000 (low temperature dehumidification - continuous treatment)	Sludge dryer (CD-4000) Type: CD-4000 (low temperature dehumidification - continuous treatment)

Spec.			CD- 100	CD- 200	CD- 300	CD- 400	CD- 500	CD- 750	CD- 1000	CD- 1500	CD- 2000	CD- 3000	CD- 4000
Spec.			Model
Capacity L/hr (85%/75%→40%)			100	200	300	400	500	750	1000	1500	2000	3000	4000
Daily capacity M³/24hr(85%/75%→40%)			2.4	4.8	7.2	9.6	12	18	24	36	48	72	96
Sludge classification			Organic / inorganic
Electricity consumption (KWH) / kg			0.3 ~ 0.55 (water content 75% ~ 85% to 40%，depending on sludge type and moisture content
Highest treatable moisture content (%)			85 (depending on sludge type and moisture content)
Drying temperature (℃)			35 ~ 70 (Depending on sludge type and moisture content)
Reference machine dimensions(mm)	Main machine	L	3600	4600	4600	4600	5200	5200	5200	5200	5200	5200	5200
		W	2000	2100	2100	2100	2400	2400	2400	2400	2400	2400	2400
		H	2300	2300	2300	2300	2700	2700	2700	2700	2700	2700	2700
	Drying Tank	L	4000	4200	5200	6200	7200	10000	12000	18000	24000	36000	48000
		W	2600	2500	2500	2500	2500	2500	2500	2500	2500	2500	2500
		H	3700	4400	4400	4400	4400	4400	4400	4400	4400	4400	4400
Number of mainframe			1	1	1	2	2	3	4	6	8	12	16
Space required (m×m)			8×3	8x4	8x5	10×6	10×8	12x8	14x10	21x10	26x10	38x10	50 x10
