CH Series-Sludge dryer

Sludge dryer (CH-100) Type: CH-100 (hot air drying type - continuous processing)	Sludge dryer (CH-200) Type: CH-200 (hot air drying type - continuous processing)	Sludge dryer (CH-300) Type: CH-300 (hot air drying type - continuous processing)	Sludge dryer (CH-400) Type: CH-400 (hot air drying type - continuous processing)

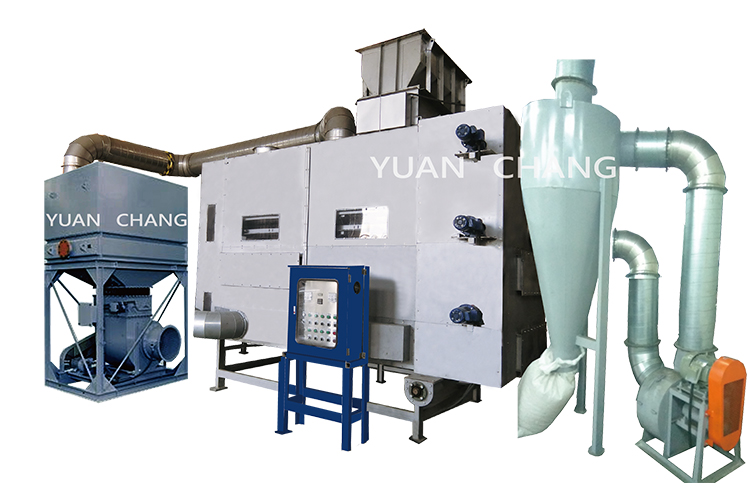

Sludge dryer (CH-500) Type: CH-500 (hot air drying type - continuous processing)	Sludge dryer (CH-750) Type: CH-750 (hot air drying type - continuous processing)	Sludge dryer (CH-1000) Type: CH-1000 (hot air drying type - continuous processing)	Sludge dryer (CH-1500) Type: CH-1500 (hot air drying type - continuous processing)
Sludge dryer (CH-2000) Type: CH-2000 (hot air drying type - continuous processing)	Sludge dryer (CH-3000) Type: CH-3000 (hot air drying type - continuous processing)	Sludge dryer (CH-4000) Type: CH-4000 (hot air drying type - continuous processing)

Spec.			CH-100	CH-200	CH-300	CH-400	CH-500	CH-750	CH-1000	CH-1500	CH-2000	CH-3000	CH-4000
Spec.			Model
Capacity kg/hr (85/75%→40%)			100	200	300	400	500	750	1000	1500	2000	3000	4000
Daily capacity Ton/24hr(85%/75%→40%)			2.4	4.8	7.2	9.6	12	18	24	36	48	72	96
Sludge classification			Organic / inorganic
Heat source			Steam / waste heat / electric heat
Highest treatable moisture content (%)			85 / 75 (depending on sludge type and moisture content)
Drying temperature (℃)			100 ~ 150 (depending on sludge type and moisture content)
Reference machine dimensions (mm)	Main machine	L	2500	2500	2500	2500	2500	2500	2500	2500	2500	2500	2500
		W	1300	1300	1300	1300	1300	1300	1300	1300	1300	1300	1300
		H	1500	1500	1500	1500	1500	1500	1500	1500	1500	1500	1500
	Dry tank	L	1500	3500	5000	6200	7500	9000	12000	18000	24000	36000	48000
		W	2500	2500	2500	2500	2500	2500	2500	2500	2500	2500	2500
		H	4400	4400	4400	4400	4400	4400	4400	4400	4400	4400	4400
Number of mainframe			1	1	1	2	2	3	4	6	8	12	16
Space required (m×m)			8x3	8x4	8x5	10x6	10x8	12x8	14x10	21x10	26x10	38x10	50x10
