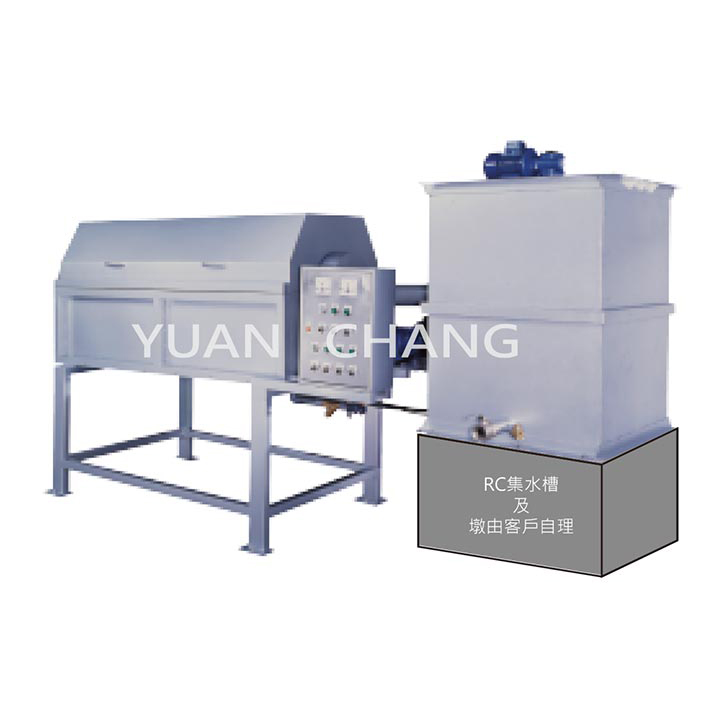

Continuous sludge thickener(RDT-15)
Type: RDT-15 Continuous sludge thickener
The solid capture rate was 95%.
Features
- The structure is simple, the maintenance is easy, the running cost is low and the maintenance cost is small.
- The solid capture rate was 95%.
- High performance, durable, base. No maintenance required.
- Low energy consumption, low polymer consumption.
USAGES
- For various low‐concentration sludge (between S.S. 0.4 ~ 1.0%) concentration reduction, it can effectively increase the S.S. concentration to between 3.5 ~ 12%, and indeed achieve the cost‐effectiveness of sludge volume reduction.
- Especially suitable for various industrial areas, such as integrated sewage plants, municipal sewage plants, water purification plants, etc., where a large amount of sludge needs to be treated.
- Various industrial sludge reduction pre‐concentration treatment.
- The tap water is filtered before entering the water and filtered by rainwater
- Engineering drainage and combined wastewater treatment of urban domestic sewage, pulp industry, fiber industry, chemical industry, etc.
- Water supply plant, sewage treatment plant, public municipal project, steel/metallurgy, petroleum/chemical, electric power, papermaking, textile/dyeing, brewing, fine chemical, pharmaceutical, coal mine, food and beverage, electronic/circuit, electroplating/surface engineering, building , energy, desalination, hospitals, civil clean water, ships, boilers, and others.
- Used in water treatment systems such as blast furnaces, continuous casting, hot rolling and water plants in the metallurgical industry.
- Concentration or purification of all solid‐containing slurry in coal, chemical, building materials and water supply industries.
Machine outline diagram
Standard specifications (Contact for customized)
|
|
RDT-15 |
| Screen specifications (mesh/#) | 30~80 |
| Capacity ((m³/hr) Influent concentration (S.S 0.6~2.0%) |
7.5~15 |
| Absolute dryness (kg/hr) | 90~150 |
| Sludge outflow concentration (%) | 3.5~11 |
| Power usage (HP) |
|
| Drum drive (no step change) | 1/2 |
| Conditioning mixer | 1/4 |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless steel (SUS316/316L) |
| Referance dimension(mm) |
|
| L |
3600 |
| W | 1150 |
| H | 2000 |
| Reference weight (kgs) | 450 |
Remarks：
- All models are not equipped with the total drain pan under the filtrate.
- The full range of models with static mixing tube is standard.
- The amount of treatment, the amount of dryness, and the concentration of sludge outflow depend on type. concentration and characteristics of the sludge.
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
- The washing pump(optional)needs to provide the best water pressure between 4.5 and 6.5kg/cm².
