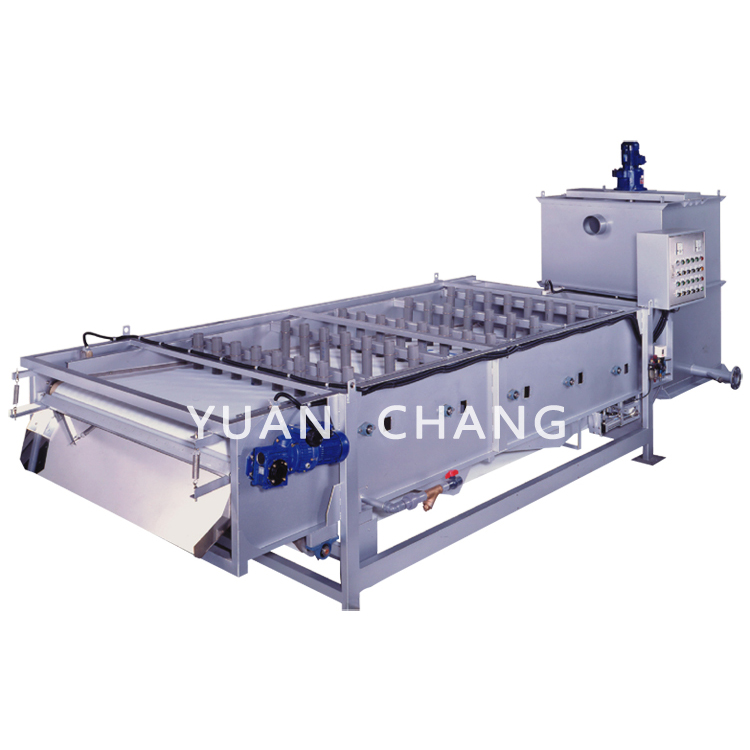

Continuous sludge thickener (SBT-2000)
Type: SBT-2000 (Gravity filter belt type)
Gravity filter belt type
Features
- High performance, durable and virtually maintenance free.
- The solid capture rate was 98%.
- Low energy consumption and low speed.
- Low polymer consumption.
USAGES
- For various low-concentration sludge(between S.S. 0.4~1.0%)concentration reductio, it can effectively increase the S.S. concentration to between 3.5~12%,and indeed achieve the cost-effectiveness of sludge volume reduction.
- Especially suitable for various industrial areas, such as interior grated sewage plants, municipal sewage plants, water purification plants etc., where a large amount of sludge needs to be treated.
- Various industrial sludge reduction pre‐concentration treatment.
- The tap water is filtered before entering the water and filtered by rainwater
- Engineering drainage and combined wastewater treatment of urban domestic sewage, pulp industry, fiber industry, chemical industry, etc.
- Water supply plant, sewage treatment plant, public municipal project, steel / metallurgy, petroleum/chemical, electric power, papermaking, textile/dyeing, brewing, fine chemical, pharmaceutical, coal mine, food and beverage, electronic/circuit, electroplating/surface engineering, building, energy desalination, hospitals, civil clean water, ships boilers, and others
- Used in water treatment systems such as blast furnaces, continuous casting, hot rolling and water plants in the metallurgical industry.
- Concentration or purification of all solid‐containing slurry in coal, chemical, building materials and water supply industries.
Machine outline diagram
Standard specifications (Contact for customized)
|
|
SBT-2000 |
| Belt width (mm) | 2000 |
| Capacity (m³ /hr) Influent concentration (S.S0.4~2.0%) |
65~85 |
| Absolute dryness (kg/hr) | 260~808 |
| Sludge outflow concentration (%) | 4.0~12 |
| Power usage (HP) |
|
| Belt drive(no step change) | 2 |
| Conditioning mixer | 3/4 |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless steel (SUS316/316L) |
| Referance dimension(mm) |
|
| L |
6650 |
| W | 2750 |
| H | 2000 |
| Reference weight (kgs) | 1850 |
Remarks：
- All models are not equipped with the total drain pan under the filtrate.
- The full range of models with static mixing tube is standard.
- The amount of treatment, the amount of dryness, and the concentration of sludge outflow depend on type. concentration and characteristics of the sludge.
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
- The washing pump(optional)needs to provide the best water pressure between 4.5 and 6.5kg/cm².
