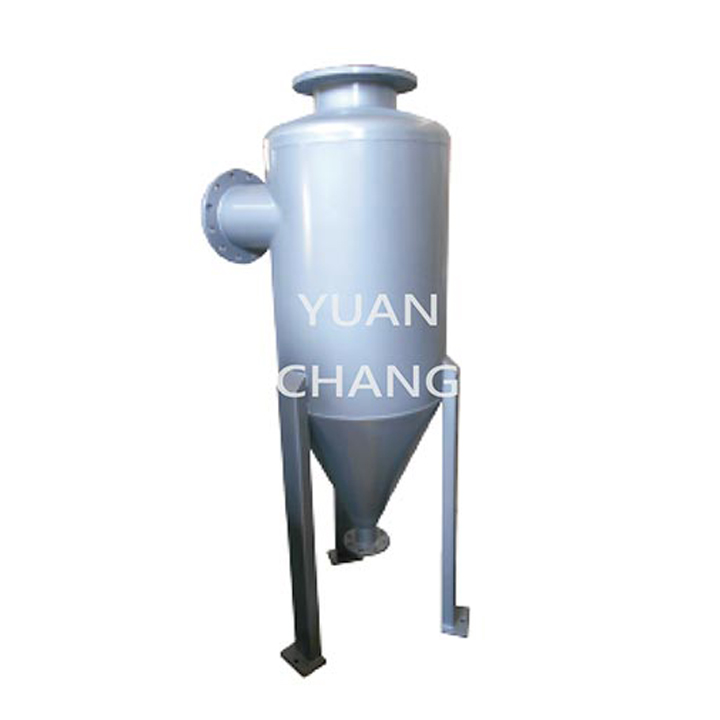

Desander/sand water separator(AA-15)
Type: AA-15 (closed swirling type sand remover)
Closed swirling type sand remover
USAGES
- Sand water separation in urban sewers and industrial zone integrated sewage treatment plants.
- Separating sand water for using river water, well water, lake water water purification plant.
- Separation of sand water such as industrial beneficiation and coal washing water.
Machine outline diagram
Standard specifications (Contact for customized)
|
|
AA-15 |
| Treatment capacity (m³ /h) |
90~160 |
| Water intake (mm) | 100 |
| Water outlet (mm) |
200 |
| Machine material | Stainless steel SUS304 |
| Referance dimension(mm) |
|
| Tank size (φ D) |
500 |
| Sand outlet(DN) |
80 |
| H | 2030 |
| H1 | 1500 |
| H2 | 320 |
Remarks：
- The separation particle filtration precision of this equipment is >2.5mm. Please specify when ordering special requirements.
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
