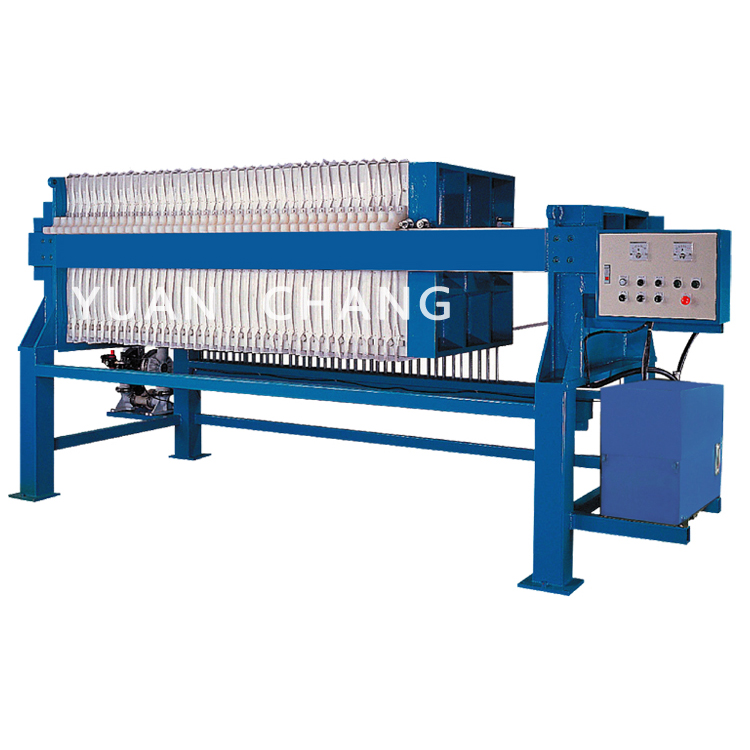

Filter Press for sludge dewatering(TC1)
Type: TC1 Semi-Automatic Type (Manual Open Plates) Series
Chamber plate / membrane type
Semi-Automatic Type (Manual Open Plates) Series-Naked Type
Semi-Automatic Type (Manual Open Plates) Series-Naked Type

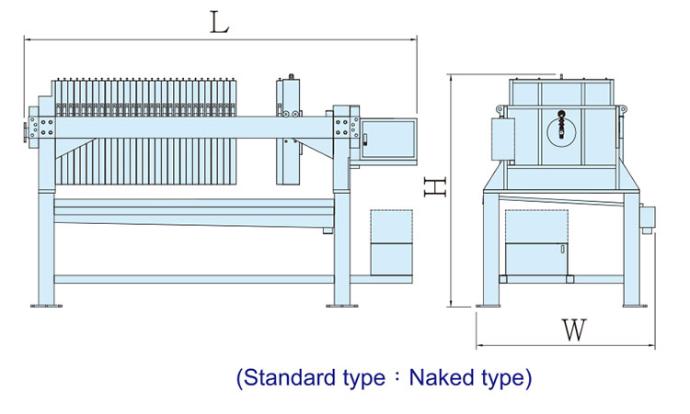

Machine outline diagram
Standard specifications (Contact for customized)
| Model |
Filter plate size & quantity(Chamber plate type) (mm/Piece) |
Filter area(M²) | Treating capacity (Sludge cake volume) (Liter／Lot) | Ref. Machine dimension (Naked type) (Not included base frame height) L x W x H (mm) | Reference weight (kgs) |
| TC1-50-10 |
500 x 10 |
4.1 | 46 | 2020 x 890 x 1520 | 790 |
| -15 | x 15 | 6.3 | 72 | 2270 x 890 x 1520 | 880 |
| -20 | x 20 | 8.6 | 98 | 2520 x 890 x 1520 | 940 |
| -30 | x 30 | 13.1 | 150 | 3020 x 890 x 1520 | 1030 |
| TC1-63-15 | 630 x 15 | 9.4 | 111 | 2300 x 1190 x 1750 | 1320 |
| -20 | x 20 | 12.7 | 150 | 2550 x 1190 x 1750 | 1460 |
| -30 | x 30 | 19.4 | 229 | 3050 x 1190 x 1750 | 1640 |
| -40 | x 40 | 26.1 | 308 | 3670 x 1190 x 1750 | 1880 |
| -50 | x 50 | 32.8 | 387 | 4170 x 1190 x 1750 | 2080 |
| TC1-80-30 | 800 x 30 | 31.0 | 435 | 3710 x 1460 x 2130 | 2780 |
| -40 | x 40 | 41.7 | 585 | 4430 x 1460 x 2130 | 3130 |
| -50 | x 50 | 52.4 | 735 | 5030 x 1460 x 2130 | 3470 |
| TC1-100-40 | 1000 x 40 | 65.9 | 944 | 4520 x 1740 x 2260 | 4820 |
| -50 | x 50 | 82.8 | 1186 | 5120 x 1740 x 2260 | 5350 |
| -60 | x 60 | 99.7 | 1428 | 5740 x 1740 x 2260 | 5880 |
| TC1-120-50 | 1200 x 50 | 118.6 | 1906 | 6100 x 2180 x 2930 | 8850 |
| -60 | x 60 | 142.8 | 2295 | 6850 x 2180 x 2930 | 9800 |
| -70 | x 70 | 167.0 | 2684 | 7550 x 2180 x 2930 | 10800 |
Remarks：
- Funnel Concentration Type is also available as an optional accessory.
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
