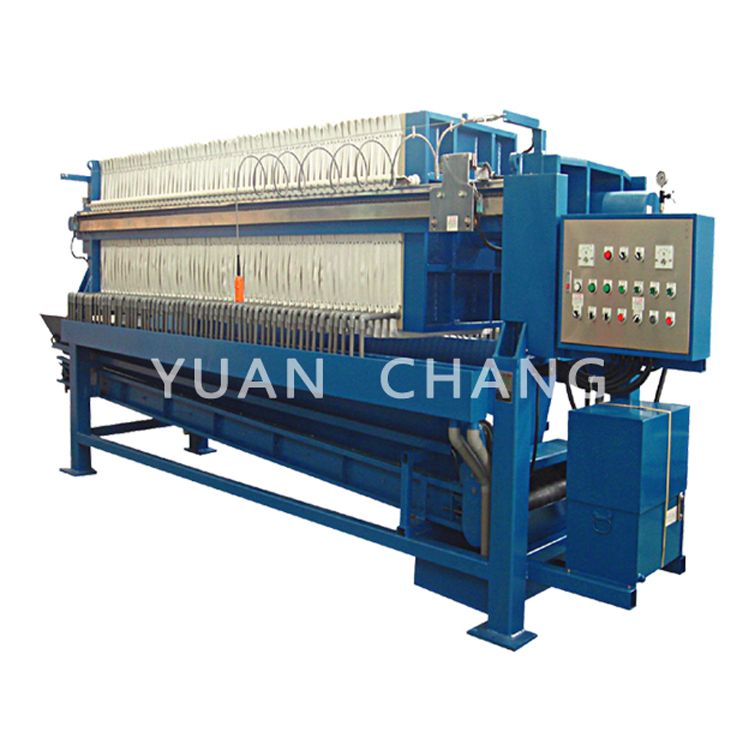

Filter Press for sludge dewatering(TC2A)
Type: TC2A Automatic Type (Plate-open one by one) (Can be upgraded to fully automatic mode) Series
Chamber plate / membrane type
Automatic Type(Plate‐open one by one)(Can be upgraded to fully automatic mode)Series
Machine outline diagram
Standard Type:Conveyor Type)
Standard specifications (Contact for customized)
| Model |
Filter plate size & quantity(Chamber plate type) (mm/Piece) |
Filter area(M²) | Treating capacity (Sludge cake volume) (Liter／Lot) | Ref. Machine dimension (Conveyor type) (Not included base frame height) L x W x H (mm) | Reference weight (kgs) |
| TC2-63-30A |
630 x 30 |
19.4 | 229 | 4100 x 1250 x 2100 | 1080 |
| -40A | x 40 | 26.1 | 308 | 4700 x 1250 x 2100 | 2040 |
| -50A | x 50 | 32.8 | 387 | 5200 x 1250 x 2100 | 2260 |
| TC2-80-30A | 800 x 30 | 31.0 | 435 | 4500 x 1520 x 2350 | 3200 |
| -40A | x 40 | 41.7 | 585 | 5200 x 1520 x 2350 | 3820 |
| -50A | x 50 | 52.4 | 735 | 5800 x 1520 x 2350 | 4450 |
| TC2-100-40A | 1000 x 40 | 65.9 | 944 | 5450 x 1850 x 2650 | 4920 |
| -50A | x 50 | 82.8 | 1186 | 6050 x 1850 x 2650 | 5380 |
| -60A | x 60 | 99.7 | 1428 | 6650 x 1850 x 2650 | 5850 |
| -70A | x 70 | 116.6 | 1670 | 7250 x 1850 x 2650 | 6430 |
| TC2-120-40A | 1200 x 40 | 94.4 | 1517 | 6080 x 2300 x 3400 | 8700 |
| -50A | x 50 | 118.6 | 1906 | 6780 x 2300 x 3400 | 9700 |
| -60A | x 60 | 142.8 | 2295 | 7500 x 2300 x 3400 | 10700 |
| -70A | x 70 | 167.0 | 2684 | 8200 x 2300 x 3400 | 11850 |
| TC2-150-50A | 1500 x 50 | 192.1 | 3146 | 6950 x 2600 x 3650 | 15100 |
| -60A | x 60 | 231.3 | 3788 | 7900 x 2600 x 3650 | 16600 |
| -70A | x 70 | 270.5 | 4430 | 8600 x 2600 x 3650 | 18000 |
| -80A | x 80 | 309.7 | 5072 | 9300 x 2600 x 3650 | 19400 |
| TC2-200-50A | 2000 x 50 | 318.5 | 6370 | 8650 x 3150 x 4150 | 35900 |
| -60A | x 60 | 383.5 | 7670 | 9520 x 3150 x 4150 | 38850 |
| -70A | x 70 | 448.5 | 8970 | 10470 x 3150 x 4150 | 41800 |
| -80A | x 80 | 513.5 | 10270 | 11350 x 3150 x 4150 | 44000 |
Remarks：
- The hopper type , Auto filtrate guard type is optional.
- When the electronic control function is upgraded, it can be upgraded to a fully automatic model (optional).
- Another 16kg/cm² class, model front +H (optional)。
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
