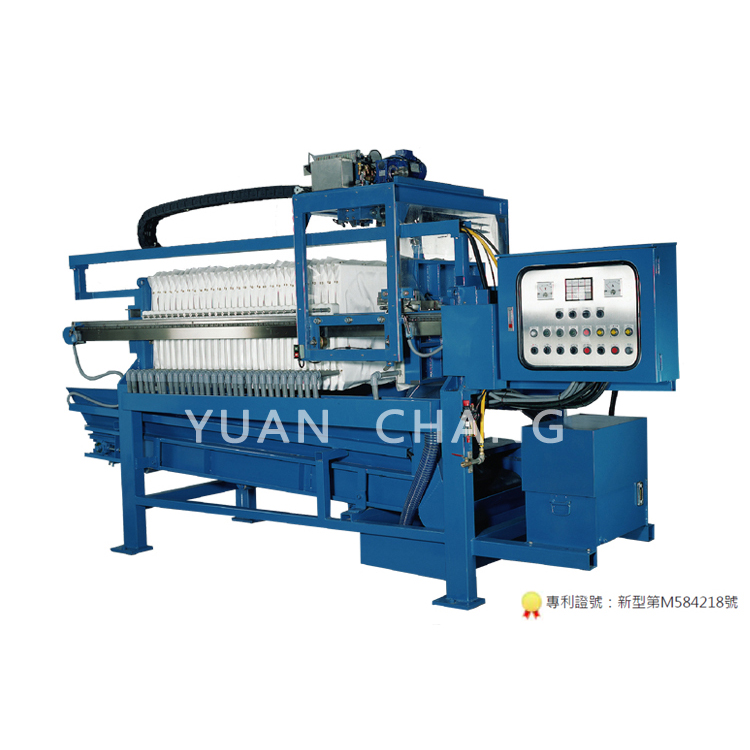

Filter Press for sludge dewatering(TC3)
Type: TC3 Fully Automatic Type (External Front Cleaning Filter Cloth) Series
Chamber plate / membrane type
Fully Automatic Type (External Front Cleaning Filter Cloth) Serie
Machine outline diagram
Standard Type: Conveyor Type)
Standard specifications (Contact for customized)
| Model |
Filter plate size & quantity(Chamber plate type) (mm/Piece) |
Filter area(M²) | Treating capacity (Sludge cake volume) (Liter／Lot) | Ref. Machine dimension (Conveyor type) (Not included base frame height) L x W x H (mm) | Reference weight (kgs) |
| TC3-80-20P |
800 x 20 |
20.3 | 285 | 4500 x 1750 x 3000 | 3200 |
| -30P | x 30 | 31.0 | 435 | 5100 x 1750 x 3000 | 3650 |
| -40P | x 40 | 41.7 | 585 | 5820 x 1750 x 3000 | 4100 |
| -50P | x 50 | 52.4 | 735 | 6420 x 1750 x 3000 | 4560 |
| TC3-100-30P | 1000 x 30 | 49.0 | 702 | 5300 x 2050 x 3100 | 5480 |
| -40P | x 40 | 65.9 | 944 | 6050 x 2050 x 3100 | 6170 |
| -50P | x 50 | 82.8 | 1186 | 6650 x 2050 x 3100 | 6860 |
| -60P | x 60 | 99.7 | 1428 | 7250 x 2050 x 3100 | 7560 |
| TC3-120-40P | 1200 x 40 | 94.4 | 1517 | 6630 x 2560 x 3750 | 9600 |
| -50P | x 50 | 118.6 | 1906 | 7330 x 2560 x 3750 | 11500 |
| -60P | x 60 | 142.8 | 2295 | 8150 x 2560 x 3800 | 13430 |
| -70P | x 70 | 167.0 | 2684 | 8850 x 2560 x 3800 | 15330 |
| TC3-150-40P | 1500 x 40 | 152.9 | 2504 | 6850 x 2650 x 4200 | 14450 |
| -50P | x 50 | 192.1 | 3146 | 7500 x 2650 x 4200 | 15870 |
| -60P | x 60 | 231.3 | 3788 | 8250 x 2650 x 4200 | 17250 |
| -70P | x 70 | 270.5 | 4430 | 8950 x 2650 x 4200 | 18730 |
| TC3-200-50P | 2000 x 50 | 318.5 | 6370 | 9200 x 3400 x 4700 | 36900 |
| -60P | x 60 | 383.5 | 7670 | 10100 x 3400 x 4700 | 39850 |
| -70P | x 70 | 448.5 | 8970 | 11050 x 3400 x 4700 | 42800 |
| -80P | x 80 | 513.5 | 10270 | 11900 x 3400 x 4700 | 45800 |
Remarks：
- The Auto filtrate guard type is optional.
- Another 16kg/cm² class, model front +H (optional)。
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
