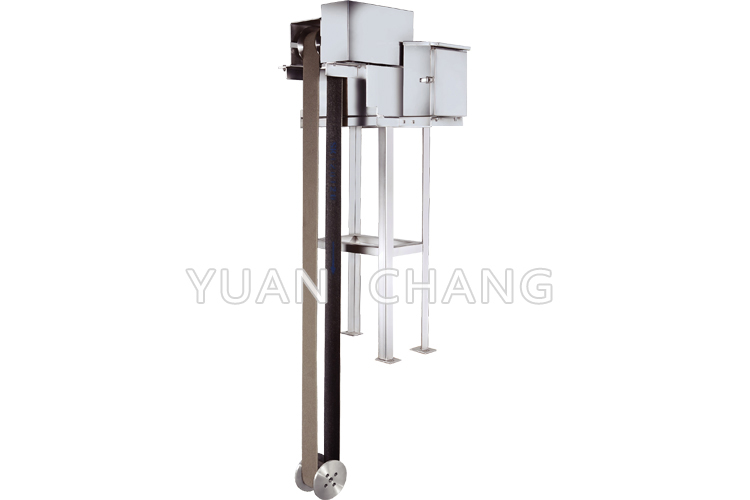

Oil and water separation equipment(GL-20)
Type: GL-20 Oil and water separation equipment(Filter belt type)
Filter Belt Type
Usages:
- The oil from the recycling of various industries is separated from the waste (sewage) water(but does not contain emulsified oil and slag oil, etc.)
- Especially suitable for the steel industry, the metal industry, the metal processing industry the metal surface treatment industry, etc
- The adsorption oil slick medium is used for the vertical fiber filter belt.
- Suitable for recycling of spindle oil, precision industrial lubricants, industrial waste oil (low concentration / low viscosity), domestic waste oil (low concentration / low viscosity)
Machine outline diagram
Standard specifications (Contact for customized)
|
|
GL-20 |
| Treatment volume(recovered oil volume L/hr)(depends on the type of oil slick) |
25-85 |
| Standing fibarwidth (mm) | 90 |
| Power usage (HP) |
1/8 |
| Mixing solution temperature (°C) | 5-50 |
| Material |
Stainless Steel (SUS304) |
| Reference dimension (mm) |
|
| Length L |
480 |
| Width W |
430 |
| Height H |
430 |
| Height H1 | About 400~1200(Cooperate with user pool depth) |
| Reference weight (kgs) |
30 |
Remarks：
- The amount of oil to are be ccepted depending on the type and and thickness of the oil film. Please contact us separately.
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
