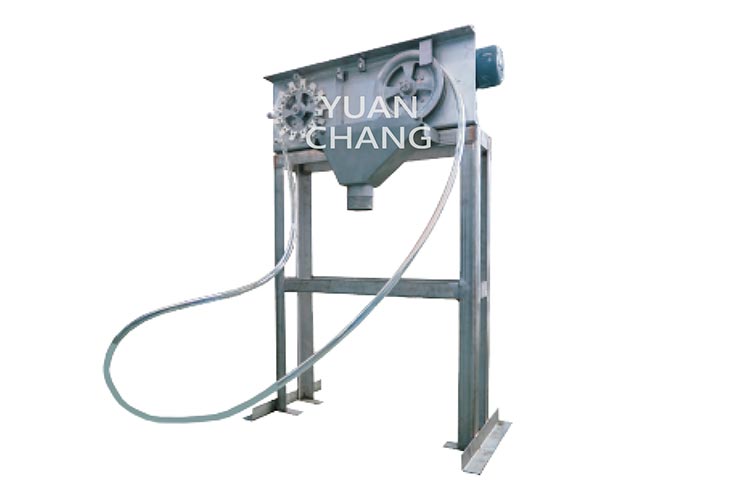

Oil and water separation equipment(GV-20)
Type: GV-20 Oil and water separation equipment(Tube series)
Tube Type
Usages:
- The waste water treatment plant recycles the oil from various industries and separates it from waste (sewage)water.
- Small degreasing agent, precision industrial lubricating oil, industrial waste oil, and domestic waste oil pool are separated from oil and water.
- CNC processing plants, steel industry, automobile manufacturing plants, metal processing industry, metal surface treatment industry, heat treatment and quenching plants.
- The animal fat and vegetable oil floating on the water are separated and used
Machine outline diagram
Standard specifications (Contact for customized)
|
|
GV-20 |
| Treatment volume(recovered oil volume L/hr)(depends on the type of oil slick) |
20-230 |
| Minimum pool capacity(mm x mm) | 500 x 800 |
| Drive power(KW) |
120 x 2 |
| Maximum rise height (M) | 10 |
| Machine type |
Vertical |
| Mixing solution temperature (°C) |
-10~95 |
| Mixing solution PH | 5-14 |
| Material | Stainless steel SUS304 |
| Reference dimension(mm) | |
| Length | 590 |
| Width | 680 |
| Height |
620 |
| Reference weight (kgs) |
65 |
Remarks：
- The data of the degreasing amount in the above specification table is measured according to the cutting fluid slick,
- The amount of treatment depends on the type of oil quality, such as high viscosity, medium, low and oil quality Please contact us separately.
- The specification is accepted outside the specification, and the company reserves the right to design changes
- Please ask for the actual installation dimension drawing before ordering.(mm)
