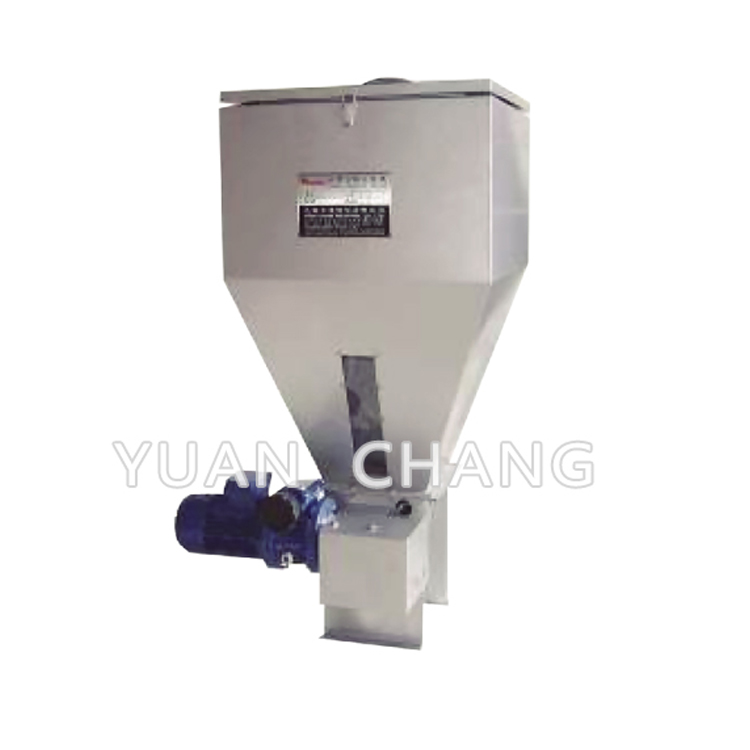

Powder automatic dosing machine(PL-350)
Type: PL-350 Powder automatic dosing machine
PL Series–Powder automatic dosing machine
Machine outline diagram
Standard specifications (Contact for customized)
|
|
PL-350 |
| Power supply tank capacity(L) | 350 |
| Power discharge capacity(For referance) (L/hr) (kg/hr) |
16.7~83.3(10~50) |
| Powder delivery machine (no step change) (HP) | 1/4 |
| Electric control box | Basic type |
| Thermal insulation device |
Resistance wire / hot thermostat |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless Steel (SUS316) |
| Referance dimension(mm) |
|
| L |
850 |
| W | 730 |
| H | 1300 |
| Reference weight (kgs) | 150 |
Remarks：
- The data of the powder discharge amount in the above table is the measured value of the Polymer powder (specific weight 0.6) at 50 Hz
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
