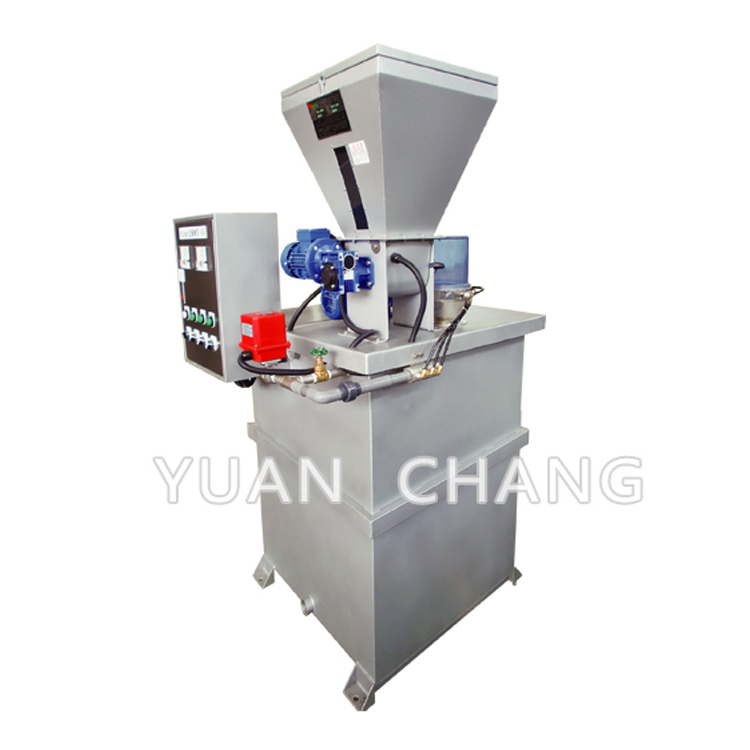

Powder automatic dosing machine(PL1-1000)
Type: PL1-1000 Semi‐automatic single tank batch type
Semi‐automatic single tank batch type
Machine outline diagram
Standard specifications (Contact for customized)
|
|
PL1-1000 |
| Power supply tank capacity(L) | 55 |
| Solution making volume (L/hr) |
1000 |
| Power usage (HP) | |
| Powder delivery machine (constant speed) | 1/4 |
| Solution mixer |
3/4 |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless steel (SUS316), Polypropylene (P.P.) |
| Referance dimension(mm) |
|
| L |
1200 |
| W | 1350 |
| H | 2050 |
| Reference weight (kgs) | 270 |
Remarks：
- Please provide a water supply source of 2.5kg/cm² or more to ensure the brewing effect (the pressure is not up to the water supply pressure pump (optional)), If you need to make ccncentration more than 0.6%, please ccntact us.
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
