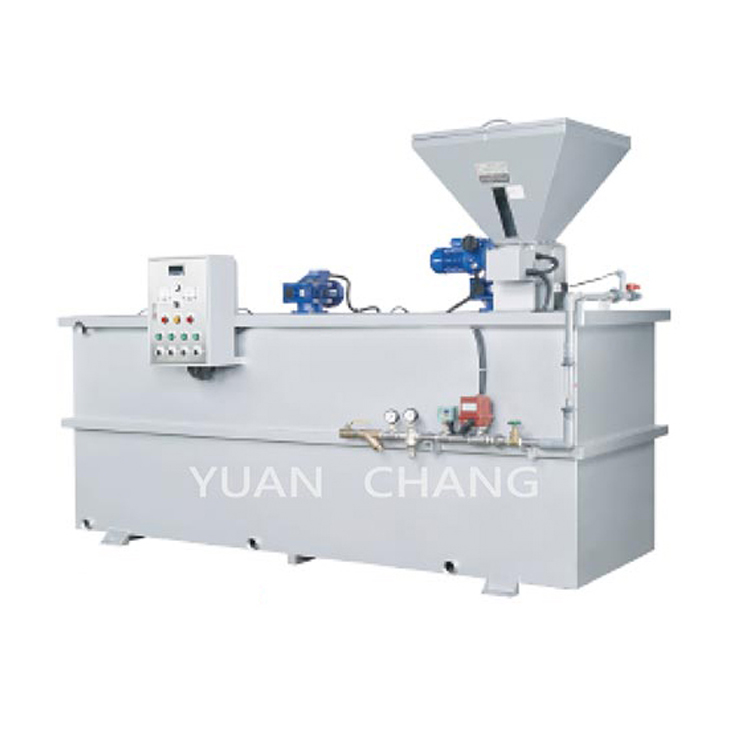

Powder automatic dosing machine(PL3-1000)
Type: PL3-1000 Fully automatic triple tank continuous type
Fully automatic triple tank continuous type
Machine outline diagram
Standard specifications (Contact for customized)
|
|
PL3-1000 |
| Power supply tank capacity(L) | 55 |
| Solution making volume (L/hr) |
1000 |
| Power usage (HP) | |
| Standard | |
| Powder elivery machine (constant speed) | 1/4 |
| Solution mixer x 2 |
1/2 |
| Optional | |
| Third tank solution mixer | 1/4 |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless steel (SUS316), Polypropylene (P.P.) |
| Referance dimension(mm) |
|
| L |
2050 |
| W | 950 |
| H | 2050 |
| Reference weight (kgs) | 430 |
Remarks：
- Please provide a water supply source of 2.5kg/cm2 or more to ensure the brewing effect (the pressure is not up to the water supply pressure pump (optional)).
- If you need to make concentration more than 0.6%, please contact us.
- It can be expanded into four slots (customer can also contact).
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
