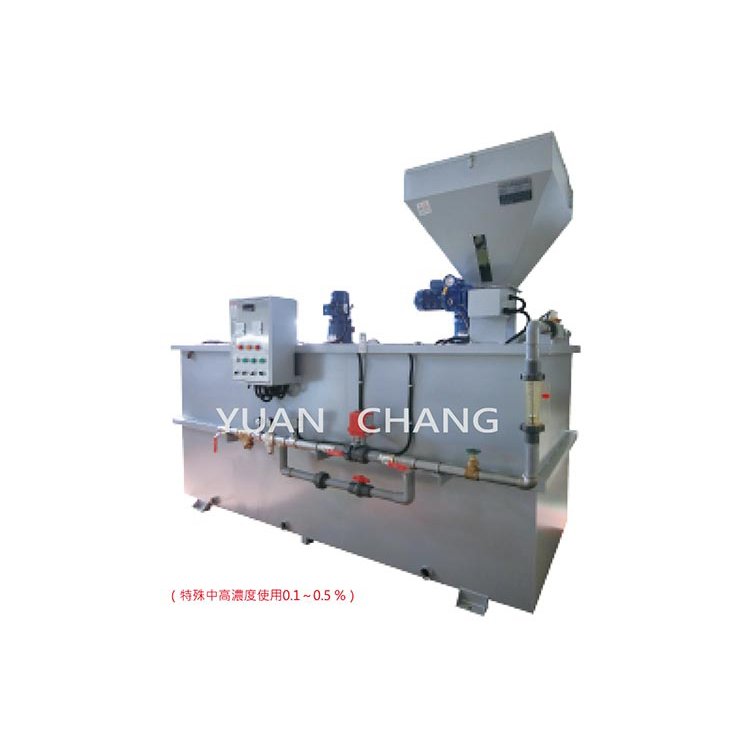

Powder dissolution automatic processing machine(PL3-M-7000)
Type: PL3-M-7000 Three tank high concentration series (customized products)
Three tank high concentration series (customized products)
Standard specifications (Contact for customized)
|
Spec. |
PL3-M-7000 |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless steel (SUS316), Polypropylene (P.P.) |
| Solution mixer(HP) | 1/4~2 x 3Pcs |
| Solution transfer pump(HP) | None |
| Solution making volume(L/hr) | 7000 |
| Powder supply tank capacity(L) | 200 |
| Powder delivery machine (no step speed) | 1/4 |
| Referance dimension(mm) |
|
| L |
4100 |
| W | 1800 |
| H | 2640 |
| Reference weight (kgs) | 1100 |
Remarks：
- Please provide a water supply source of 2.5kg/cm² or more to ensure the brewing effect (the pressure is not up to the water supply pressure pump (optional)), If you need to make ccncentration more than 0.6%, please ccntact us.
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
Usages：
- It is especially suitable for municipal sewage treatment plants, industrial wastewater treatment and other industries that require the use of flocculant solutions.
- Widely used in sludge dewatering, wastewater treatment and various processes (food, chemical, dyeing and finishing, papermaking, etc.) where the powder is dissolved and added.
- It is suitable for the dissolution and addition of various dry powders, granules and flocculants and concentrate powders.
