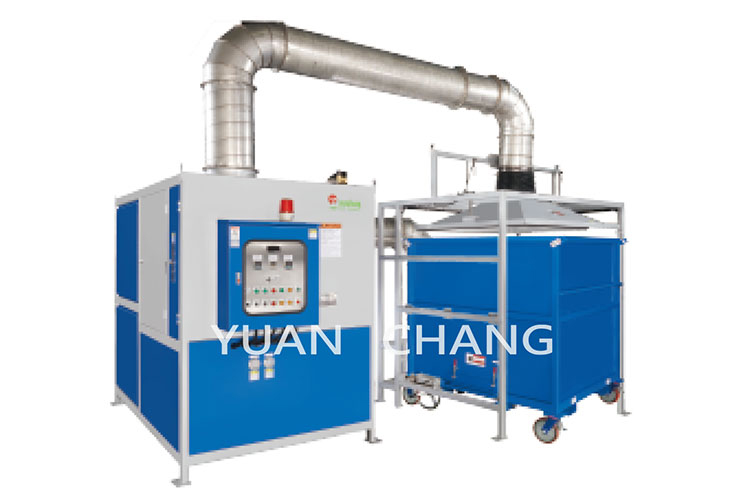

Sludge dryer (CDB-1500)
Type: CDB-1500 Low temperature dehumidification type drying system (batch treating)
Low temperature dehumidification type drying system (batch treating)
Low temperature dehumidification type drying system (batch treating)
Usages:
- Applicable to the drying reduction of sludge cake after dehydration of various industrial sludges (inorganic).
- The volume of sludge after drying is reduced by 40%, the weight by more than 70%, and the treatment cost is effectively reduced.
- The electricity consumption is only 0.4~0.6 degrees per kilogram of dewatering. It can also be used in the off peak electricity price period to operate with high economic benefits.
- Closed circulation, low noise, no waste water, waste gas, no secondary pollution problems.
Features:
- The volume of sludge after drying is reduced by 50%, the weight by more than 60%, and the treatment cost is effectively reduced.
- The electricity consumption is only 0.3~5.5 degrees per kilogram of dewatering. It can also be used in the off peak electricity price period to operate with high economic benefits
- Closed circulation, low noise, no waste water, waste gas, no secondary pollution problems.
- Patent certificate number: new type M585786.
Machine outline diagram
Standard specifications (Contact for customized)
|
Specification / Model |
CDB-1500 |
| Bath capacity L/24hr(75%→40%) | 1500 |
| Sludge classification & sources |
Organic (depending on actual test) / inorganic: Sludge cake after dewatering using a filter press / belt filter / volute / screw press / centrifuger |
| Electricity consumption (KWH) | 0.3 ~ 0.55 ((water content 75% ~ 85% to 40%，depending on sludge type and moisture content) |
| Drying temperature (℃) |
35 ~ 70 (Depending on sludge type and moisture content) |
| Reference dimension(mm) Main machine |
|
| L |
3000 |
| W | 1650 |
| H | 2310 |
| Reference dimension(mm) Drying cart/tank | |
| L | 1500 |
| W | 1500 |
| H | 1750 |
| H1 | 3270 |
| Space required (m×m) | 6 x 6 |
Remarks：
- Model front +T : Drying tank type。
- The working temperature of the working plant area is 10~40°C.
- The water content of sludge less than 85% after dewatering of filter belt type dewatering machine, stacked screw dewatering machine and centrifugal dewatering machine is also applicable, Please contact us for relevant data.
- The specification is accepted outside the specification, and the company reserves the right to design changes
- Please ask for the actual installation dimension drawing before ordering..
