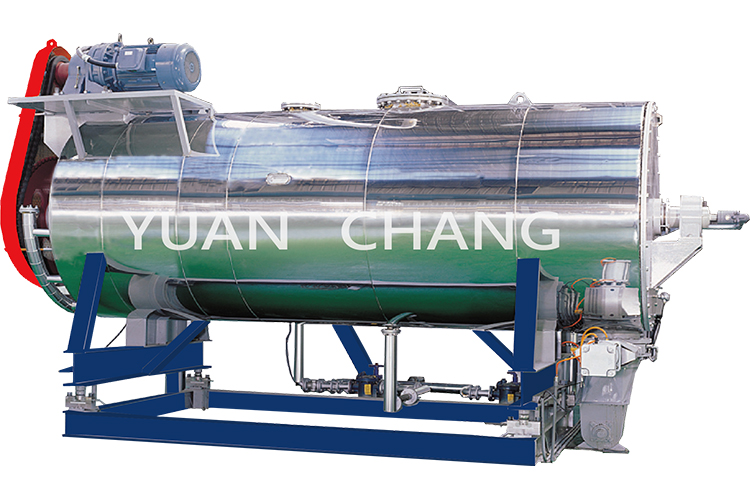

Sludge dryer (KV-9TD)
Type: KV-9TD (tower disc-continuous processing)
Vacuum disc type - batch processing
Usages & Features:
- The best drying reduction system for chemical sludge and biological sludge.
- Electroplating sludge, boiler soot, terephthalic acid sludge, pharmaceutical factory waste residue, sugar factory waste residue, MSG factory waste residue, urban sludge, kitchen sludge, industrial sludge, bacterial residue powder.
- Soy sauce residue, lees, vinegar residue, food waste, apple residue, soybean meal, bio-residue mud.
- Suitable for slurry, paste and powdery sludge.
- Easily oxidized, strong irritant, highly toxic sludge.
- Requires the recovery of sludge from organic solvents.
Machine outline diagram
Standard specifications (Contact for customized)
|
Specification / Model |
KV-9TD |
| Capacity ton/8hr(75%~85%→40%) | 3~3.75 |
| Daily capacity ton/24hr(75%~85%→40%) | 9~11.5 |
| Sludge classification | Organic / inorganic |
| Heat source | Steam / hot kerosene |
| Highest treatable moisture content (%) | 85 (depending on sludge type and moisture content) |
| Drying temperature (℃) | 100 ~ 150 (depending on sludge type and moisture content) |
| Reactor dimension |
|
| Ф |
1500 |
| L |
5000 |
| Space required (m×m) | 10 x 10 |
Remarks：
- Main equipment: material temporary storage tank, screw transport unit, dry reactor, condenser, gas water separator, vacuum pump, cooling water tower and water pump, windmill, cyclone dust collector, washing tower, load cell, electric Control system, pipeline insulation and installation test (steam boiler, fuel tank optional equipment).
- The specification is accepted outside the specification, and the company reserves the right to design changes
- Please ask for the actual installation dimension drawing before ordering..
