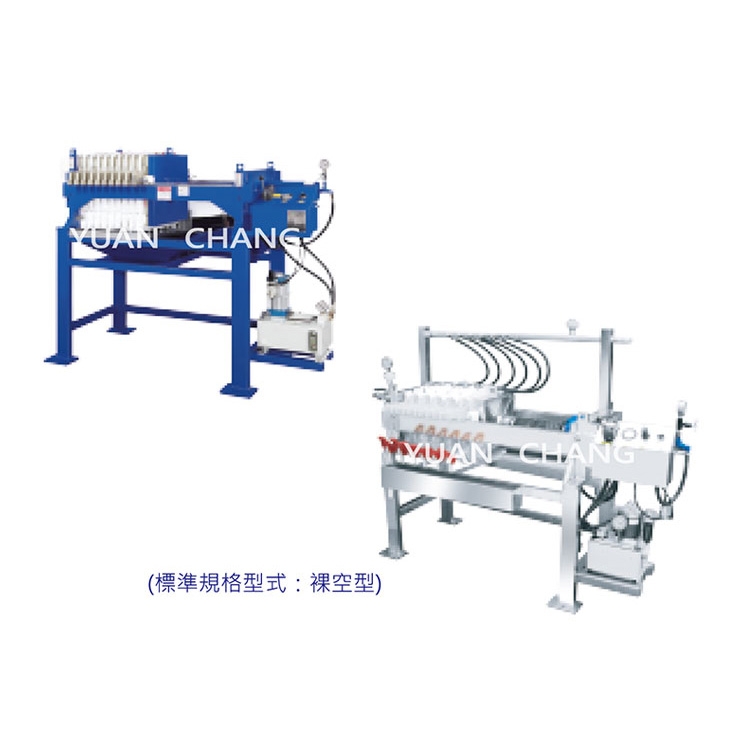

Small Experimental Filter Presses(TM0-30-5)
Type：TM0-30-5 / Small Experimental Filter Presses
Naked type
Industries & Usages:
- This model is particularly suitable for a small amount of sludge or food, chemical, manufacturing (medicine) drugs, dye (pigment) materials, the recycling industry and other processes used in the experimental tests
- You can also order a desktop micro-tester. Please contact us for specifications.
Standard specifications (Contact for customized)
| Model | TM0-30-5 |
| Filter cake pres type | Second time membrane pressurization |
| Filter plate type |
Membrane plate |
| Filter plate size & quantity(Chamber plate type)(mm/piece) | 300 x 5 |
| Filter area (M2) | 0.36 |
| Treating capacity (Sludge cake volume)(Liter／Lot) |
4 |
| Ref. Machine dimension (Conveyor type) (Not included base frame height)(L x W x H)(mm) | 1800x780x1500 |
| Reference weight (kgs) | 360 |
| Filter plate lock type |
Operated by pneumatic hydraulic |
Remarks：
- Another 16kg/cm²class, model front +H (optional).
- The company reserves the right of design modification.
- Please ask for the actual dimension before ordering.
