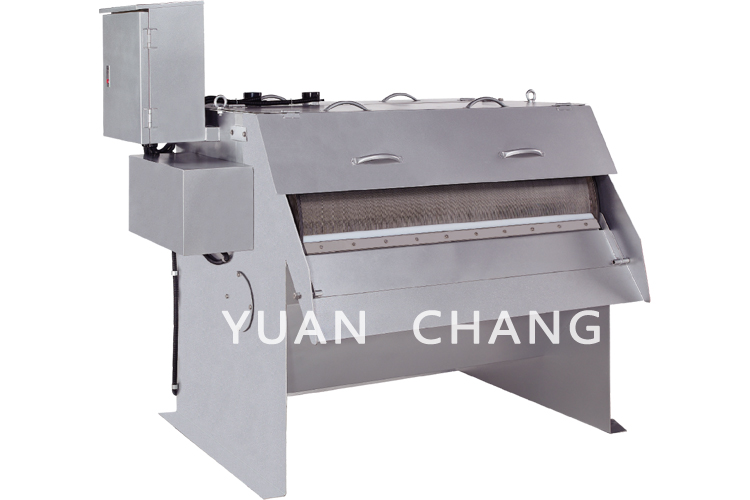

Solid-Liquid Separating Machine(DR-60-180)
Type: DR-60-180 (Outer wheel screen)
Outer wheel screen
Usages:
- Filtration separation and removal of particulate contaminants in various types of industrial wastewater.
- The tap water is filtered before entering the water and filtered by rainwater
- The removal of solid materials such as kitchen waste and grease scum before the hotel, catering industry,leisure and entertainment.
- The removal of solids such as scum and suspended particles from circulating water in the paint painting industry.
- Removal of crumb solids from the slaughter industry, the meat processing industry, and the fish processing industry
- Engineering drainage and combined wastewater treatment in urban sewage, pulp industry, chemical industry, etc
Machine outline diagram
Standard specifications (Contact for customized)
|
|
DR-60-180 |
| Screen slit(spacing)(mm) |
0.5 / 1.0 / 1.5 / 2.0 / 3.0 |
| Capaclty(water) (m³ /hr) |
240 / 450 / 540 / 660 / 826 |
| Power usage (HP) |
|
| Standard | Drum drive: 1 HP(inverter) |
| Optional | Washing pump: Power demand will vary depending on the spacing of the screen |
| Material |
|
| Standard |
Stainless steel (SUS304) |
| Optional |
Stainless steel (SUS316) 、Other special materials |
| Reference dimension (mm) |
|
| Length L |
1200 |
| Width W |
2400 |
| Height H |
1700 |
| Reference weight (kgs) |
680 |
Remarks：
- Washing pump and sewage pump are optional, please contact us separately
- The above listed data is subject to the on-site process and water quality conditions
- Wedge mesh size (smaller than 0.5 mm , larger than 3.0 mm) and processing capacity for different applications, please contact us separately
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
