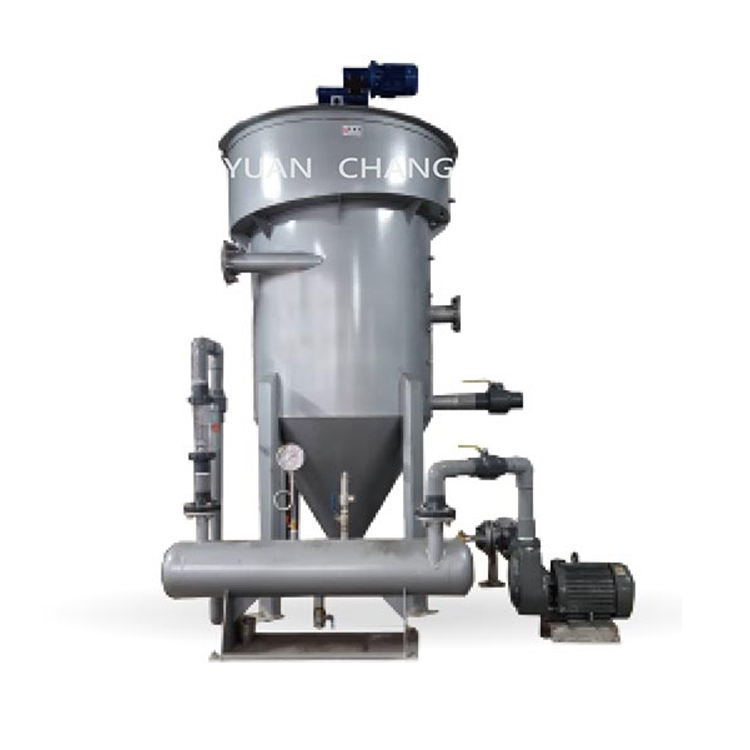

Air flotation equipment(DAC-10)
Type: DAC-10 (Circular barrel)
Circular barrel
Usages:
- Wash water is filtered for recycling and reuse .
- Solid/liquid separation of various industrial wastewater chemical coagulation treatments .
- Separation of oil/water from oily wastewater treatment..
- The concentration treatment of the sludge effectively increases the concentration and reduces the treatment cost..
- For the treatment of sludge with a small specific gravity and a small site, the equipme characteristics of short residence time and strong floating ability, especially applicable.
- The pulp of the paper mill is recycled and reused..
Machine outline diagram
Standard specifications (Contact for customized)
|
|
DAC-10 |
| Treating capacity (m³ /hr) Influent concentration (S.S0.1~0.3%) |
7~10 |
| Concentrated sludge water content(%) | 1~3 |
| Power usage (HP) |
|
| Mud dial driver(constant speed) | 1/2 |
| Emulsified water pressurized pump(Optional) | Depends on the SS concentration of the water quality of the case |
| Main tank body and air dissolution tank material |
|
| Standard | Contact parts SUS304 + externally reinforced SS400 + Epoxy Epoxy anti-corrosion treatment |
| Optional | All stainless steel SUS304、SUS316 |
| Floating tank-Referance dimension(mm) |
|
| D (Φ) |
1720 |
| H |
3100 |
| Air soluble barrel-Referance dimension(mm) |
|
| (Φ) x L | 200 x 1250 |
| W | 330 |
| H | 860 |
Remarks：
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
- The piping belongs to the on-site pipeline configuration project.
