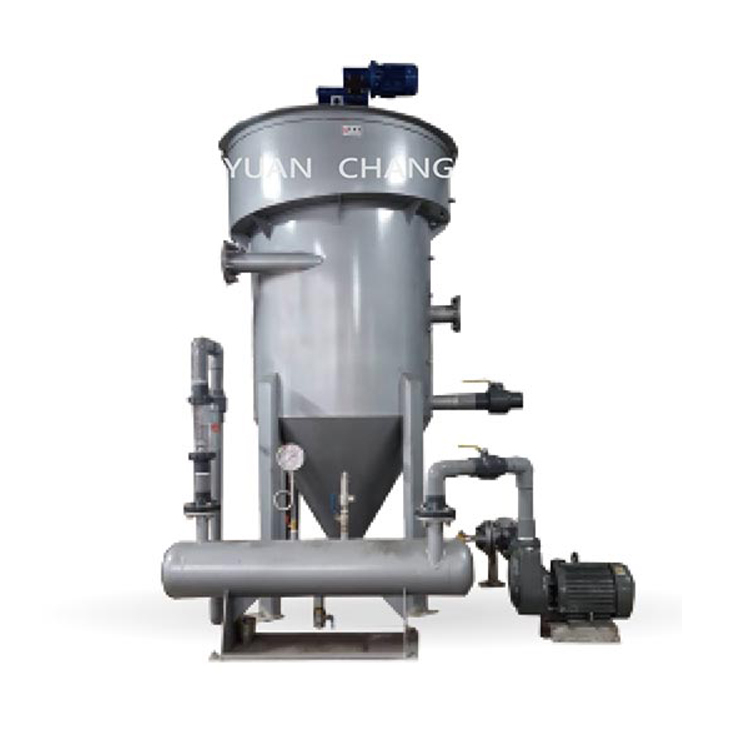

Air flotation equipment(DAC Series)

(Circular barrel)

Spec.			DAC-5	DAC-10	DAC-15	DAC-20
Spec.			Model
Treating capacity (m³ /hr) Influent concentration (S.S0.1~0.3%)			3-5	7-10	12-15	17-20
Concentrated sludge water content(%)			1~3
Power usage (HP)	Mud dial driver(constant speed)		1/2	1/2	1/2	1/2
Power usage (HP)	Emulsified water pressurized pump(Optional)		Depends on the SS concentration of the water quality of the case
Main tank body and air dissolution tank material		Standard	Contact parts SUS304 + externally reinforced SS400 + Epoxy Epoxy anti-corrosion treatment
Main tank body and air dissolution tank material		Optional	All stainless steel SUS304、SUS316
Reference machine dimensions (mm)	Floating tank	D (Φ)	1180	1720	1970	2370
	Floating tank	H	2625	3100	3220	3850
	Air soluble barrel	(Φ) x L	200 x 1250	200 x 1250	250 x 1260	250 x 1260
		W	330	330	380	380
		H	860	860	910	910
