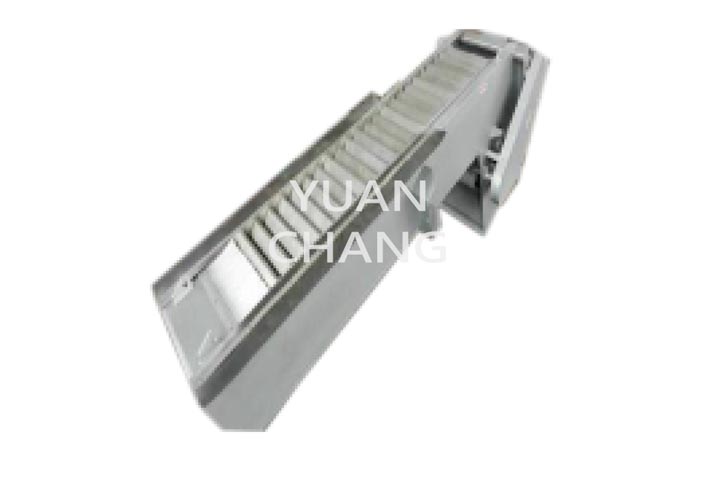

Automatic Bar Screen(YCT-120)
Type: YCT-120 (Stepped type)
Stepped Type-The ladder trap has a reliable self-cleaning effect
Features:
- The ladder trap has a reliable self-cleaning effect.
- Reliable self-cleaning ability in structural design, no dirt entanglement and stagnation.
- High degree of automation, high separation efficiency, low power consumption, no noise, good corrosion resistance.
- Simple operation, low failure rate, greatly reduced wearing parts, long service life, compared with rake teeth grid.
- 操The slag is clean and free from entanglement, which greatly improves the filtration efficiency.
Usages:
- Urban sewage treatment, especially suitable for removing fibrous wastes from printing and dyeing wastewater.
- Pre-stage screening equipment in wastewater treatment processes in the textile, food processing, paper, leather and other industries.
- Removal of floating and suspended matter form municipal wastewater and industrial wastewater
- Soild removal of raw hair and hair washing wastewater.
- The solids at the inlet of the tap water intake point.at the cooling water inlet of the thermal power plant are removed.
Machine outline diagram
Standard specifications (Contact for customized)
|
|
YCT-120 |
| Bar spacing (mm) |
1 / 2 / 3 / 4 / 6 / 8 |
| Capacity(water) (m³ /hr) |
720~3456 |
| Effective screen width W1 (mm) |
1200 |
| Machine bottom width W2 (mm) |
1450 |
| Channel width W3 (mm) |
1550 |
| Effective water depth H1 (mm) |
The treatment volume is calculated by the water depth of 1M |
| Channel depth H2 (mm) |
Depends on the needs of the site(general 1~5M) |
| Slag removal height H3(mm) | Depending on the needs of the machine |
| Installation angle |
60° ~ 80°(Standard 75°) |
| Overgate flow speed(M/s) | 05 ~ 1.0 |
| Bar screen drive(KW) | 0.75~1.12 |
| Material |
|
| Standard |
Stainless steel (SUS304) |
| Optional |
Stainless steel (SUS316) 、Other special materials |
| Reference dimension (mm) |
|
| Reference weight (kgs) |
Depending on the needs of the machine |
Remarks:
- Same as the remarks of YC3 series.
- When ordering, the model number is shown-Example YCT-30-6(i.e.model-effective screen width-rake teeth opening.
