Automatic bar screen(YCT Series)

(stepped type)

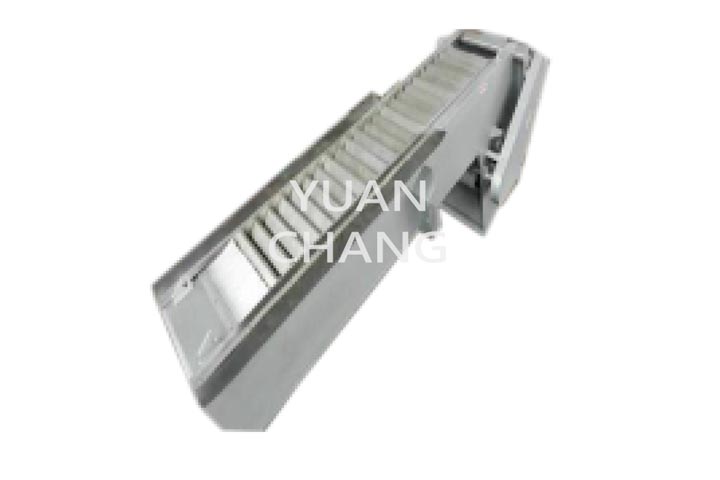

Automatic Bar Screen(YCT-30) Type: YCT-30 (Stepped type)	Automatic Bar Screen(YCT-45) Type: YCT-45 (Stepped type)	Automatic Bar Screen(YCT-60) Type: YCT-60 (Stepped type)	Automatic Bar Screen(YCT-90) Type: YCT-90 (Stepped type)
Automatic Bar Screen(YCT-120) Type: YCT-120 (Stepped type)

Spec.		YCT-30	YCT-45	YCT-60	YCT-90	YCT-120
Spec.		Model
Separation mesh aperture(mm)		1、2、3、4、6、8
Capacity(water) (m³ /hr)		180~864	270~1296	360~1728	540~2592	720~3456
Effective screen width W1 (mm)		300	450	600	900	1200
Machine bottom width W2 (mm)		450	600	750	1150	1450
Channel width W3 (mm)		550	700	850	1250	1550
Effective water depth H1 (mm)		The treatment volume is calculated by the water depth of 1M
Channel depth H2 (mm)		Depends on the needs of the site(general 1~5M)
Slag discharge height H3 (mm)		Depending on the needs of the machine
Installation angle		60°~80°(Standard 75°)
Bar screen drive(KW)		0.37~0.56	0.56~0.75	0.56~0.75	0.75~1.12	0.75~1.12
Over gate flow speed(M/s)		0.5~1.0
Machine material	Standard	Stainless Steel (SUS304)
Machine material	Optional	Stainless steel (SUS316) 、Other special materials
Reference weight		Depending on the needs of the machine
