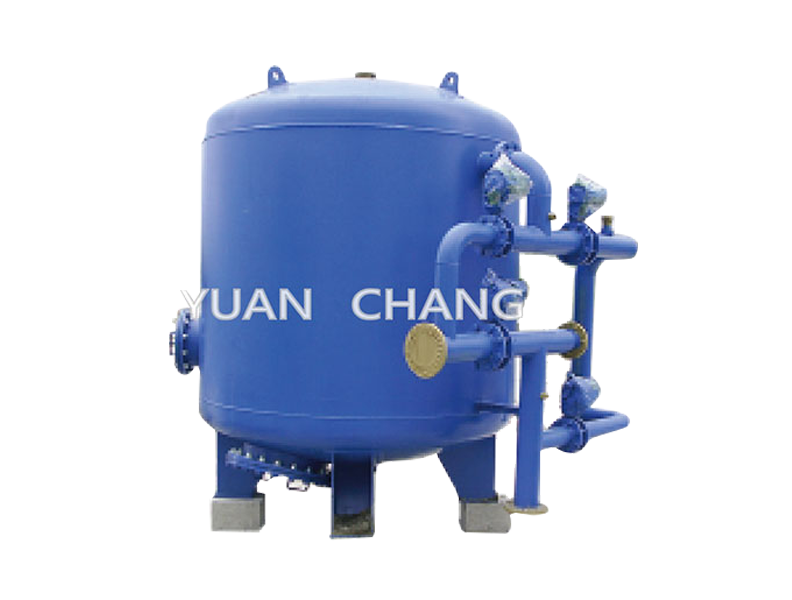

Automatic pressurized sand filter(SF-28)
Type: SF-28 Automatic pressurized sand filter
Filter factory wastewater to enable wastewater
Usages:
- Remove the pollutants from the cooling water and the process to minimize the deposits in the cooling tower water tank, condenser and heat exchanger
- Cooling Tower Filtration System, Process Water Filtration, Well Water and Irrigation Water Filtration, Landscape Fountain Filtration, Industrial Processing Water Filtration.
- Filter factory wastewater to enable wastewater discharge to meet environmental regulations.
- Pre-treatment of reprocess the discharge or recycle
- Pre-filtering of zoos, ponds, aquariums, landscape ponds, fountains, fish incubation tanks, reverse osmosis, and pre-filtration of industrial liquid recovery.
Standard specifications (Contact for customized)
|
|
SF-28 |
| Treatment Capacity(m³ /hr) | 61~180 |
| Filtration area (cm²) | 6.1 |
| Inlet and Outlet Diameter(IN) | 4" |
| Referance dimension(mm) |
|
| ø |
2800 |
| H | 1800 |
| Reference weight (kgs) | 10840 |
Remarks：
- S.S. Concentration Varies: The treatment capacity may differ depending on particle size and concentration changes.
- The specification is accepted outside the specification, and the company reserves the right to design changes
- Please request the actual installation dimension drawing before ordering
