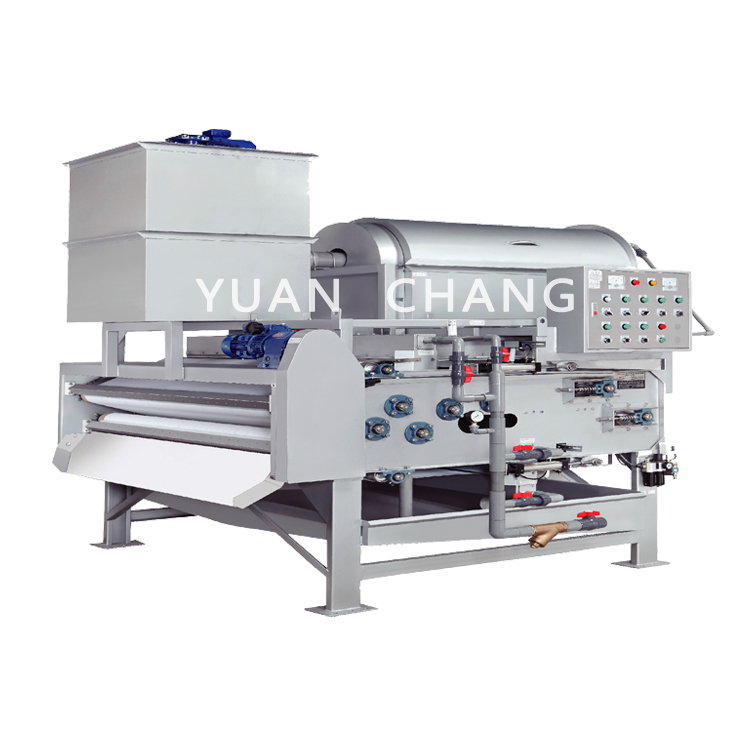

Belt Filter Presses (TA-2000)
Type: TA-2000 (Conditioning + drum thickening+ double filter belt)
S.S standard concentration
Conditioning + drum thickening + double filter belt
Machine outline diagram
Standard specifications (Contact for customized)
|
|
TA-2000 |
| Belt width (mm) | 2000 |
| Capacity (m³ /hr) Influent concentration (S.S 1.5~2.5%) |
13.5~24.5 |
| Absolute dryness (kg/hr) | 203~368 |
| Power usage (HP) |
|
| Belt drive(no step change) | 3/4 |
| Conditioning mixer | 3/4 |
| Drum thickener | 3/4 |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless steel (SUS316/316L) |
| Referance dimension(mm) |
|
| L |
3000 |
| W | 2630 |
| H | 2650 |
| Reference weight (kgs) | 1850 |
