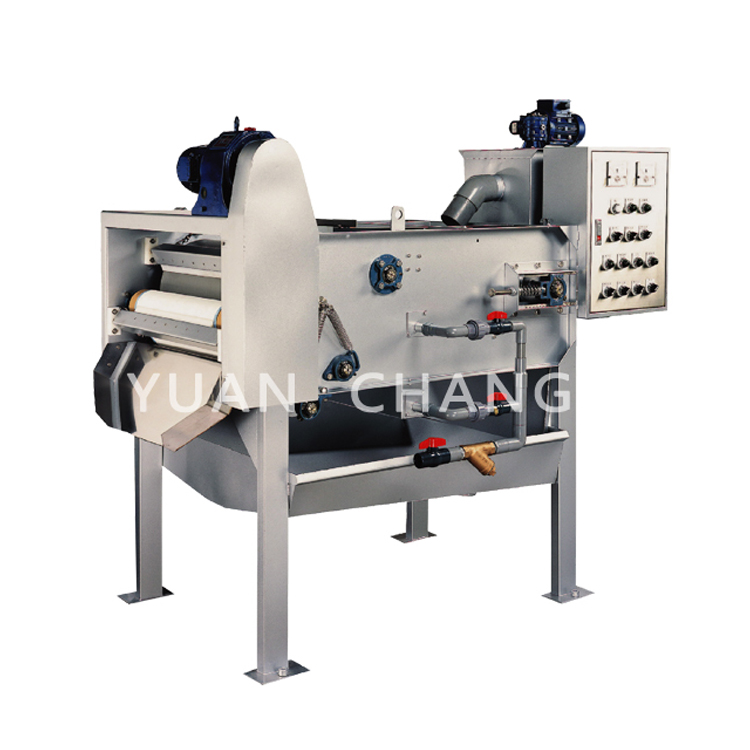

Belt Filter Presses (TD1-500K)
Type: TD1-500K (Conditioning + single filter belt)
S.S standard concentration
Conditioning + single filter belt
Conditioning + single filter belt
Machine outline diagram
Standard specifications (Contact for customized)
|
|
TD1-500K |
| Belt width (mm) | 500 |
| Capacity (m³ /hr) Influent concentration (S.S 1.5~2.5%) |
0.1~0.5 |
| Absolute dryness (kg/hr) | 1.5~8 |
| Power usage (HP) |
|
| Belt driver (constant speed) | 1/4 |
| Conditioning mixer | 1/4 |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless steel (SUS316/316L) |
| Referance dimension(mm) |
|
| L |
1680 |
| W | 950 |
| H | 1300 |
| Reference weight (kgs) | 210 |
