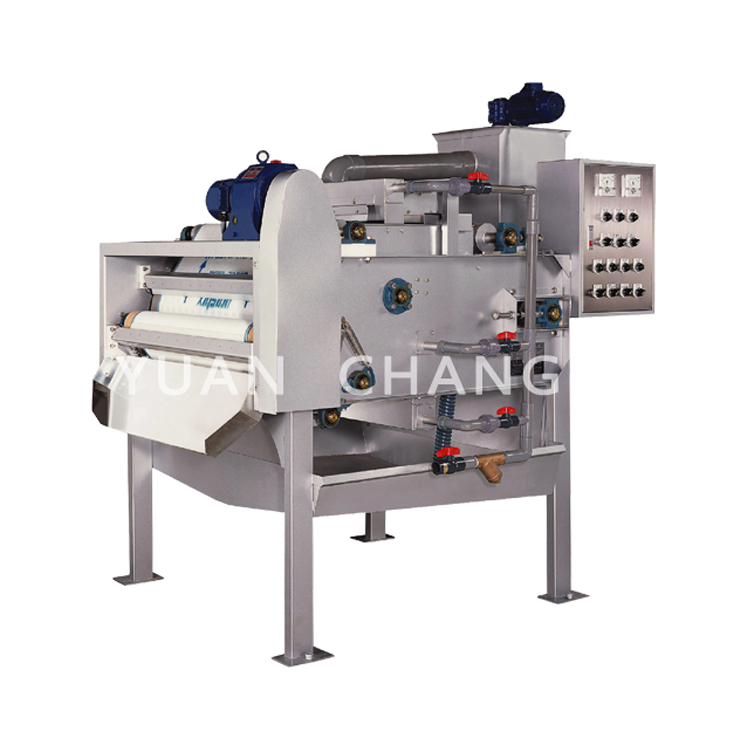

Belt Filter Presses (TD2-750)
Type: TD2-750 B (Conditioning + double filter belt)
S.S standard concentration
Conditioning + double filter belt
Machine outline diagram
Standard specifications (Contact for customized)
|
|
TD2-750 |
| Belt width (mm) | 750 |
| Capacity (m³ /hr) Influent concentration (S.S 1.5~2.5%) |
0.5~2.0 |
| Absolute dryness (kg/hr) | 7.5~30 |
| Power usage (HP) |
|
| Belt driver (constant speed) | 1/2 |
| Conditioning mixer | 1/4 |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless steel (SUS316/316L) |
| Referance dimension(mm) |
|
| L |
1830 |
| W | 1300 |
| H | 1900 |
| Reference weight (kgs) | 430 |
