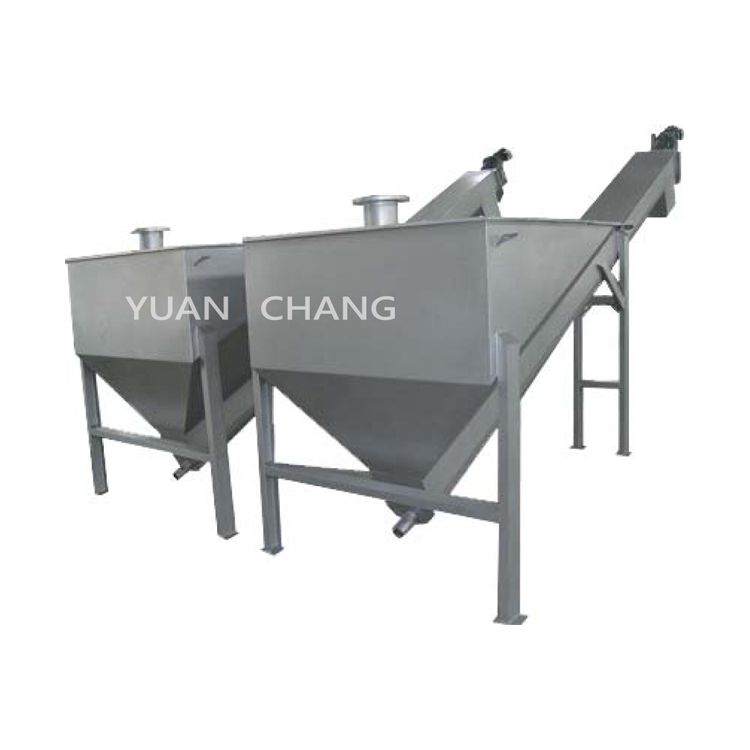

Desander/sand water separator(AB-28)
Type: AB-28 (screw sand water separator)
Screw sand water separator
USAGES
- Separate sand water with high sand content in sewage
- Used in conjunction with the back of the grit chamber of the sewage treatment plant.
- Use with a closed sand remover or an open grit chamber .
Machine outline diagram
Standard specifications (Contact for customized)
|
|
AB-28 |
| Screw diameter (mm) | 280 |
| Treatment capacity (m³ /h) |
20~35 |
| Power usage (KW) | 2 |
| Speed (r/min) |
5 |
| Machine material | Stainless steel SUS304 |
| Referance dimension(mm) |
|
| L |
4500 |
| W | 1250 |
| H | 2350 |
| H1 | 1700 |
| H2 | 1750 |
Remarks：
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
