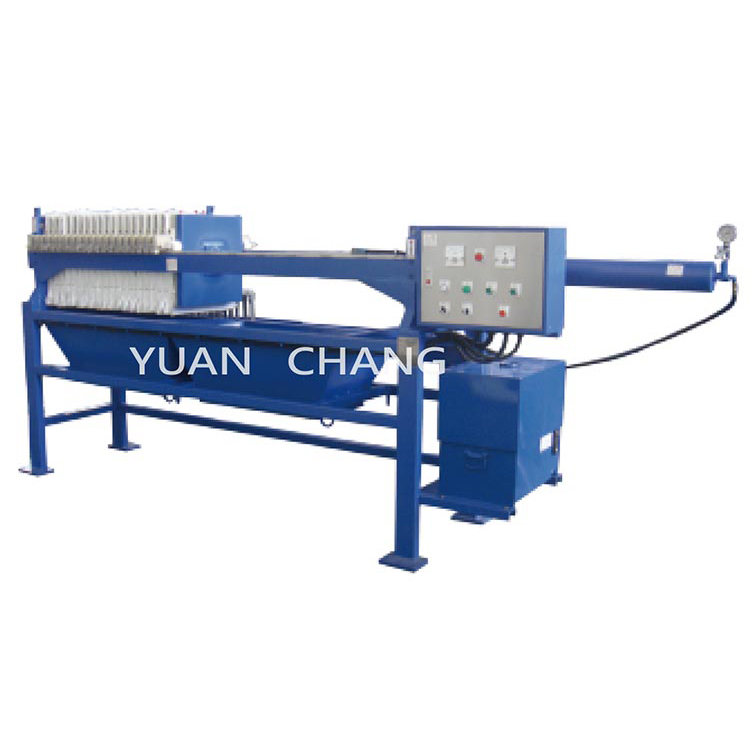

Filter Press for sludge dewatering(TC2N)
Type: TC2N Automatic Type (Chain Type One Time and Entire Section Plate-open ) Series
Chamber plate / membrane type
Chain Type One Time and Entire Section Plate-open ) Series-Hopper Type

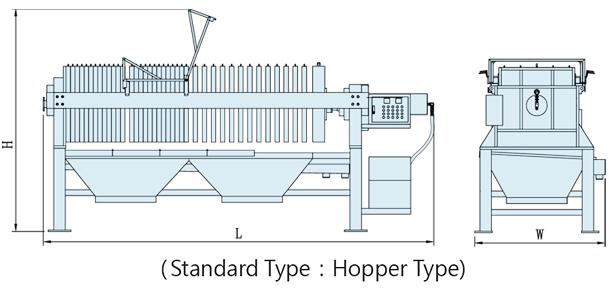

Machine outline diagram
Standard specifications (Contact for customized)
| Model |
Filter plate size & quantity(Chamber plate type) (mm/Piece) |
Filter area(M²) | Treating capacity (Sludge cake volume) (Liter／Lot) | Ref. Machine dimension (Hopper type) (Not included base frame height) L x W x H (mm) | Reference weight (kgs) |
| TC2-50-10N |
500 x 10 |
4.1 | 46 | 2700 x 890 x 1620 | 820 |
| -15N | x 15 | 6.3 | 72 | 3650 x 890 x 1620 | 920 |
| TC2-63-10N | 630 x 10 | 6.0 | 71 | 2700 x 1190 x 1750 | 1380 |
| -15N | x 15 | 9.4 | 111 | 3650 x 1190 x 1750 | 1500 |
| -20N | x 20 | 12.7 | 150 | 4650 x 1190 x 1750 | 1680 |
| TC2-80-15N | 800 x 15 | 15.0 | 210 | 4500 x 1460 x 2150 | 2960 |
| -20N | x 20 | 20.3 | 285 | 5830 x 1460 x 2150 | 3300 |
| TC2-100-15N | 1000 x 15 | 23.7 | 339 | 4650 x 1740 x 2260 | 4050 |
| -20N | x 20 | 32.1 | 460 | 5980 x 1740 x 2260 | 4550 |
Remarks：
- The conveyor type , Auto filtrate guard type is optional.
- Another 16kg/cm² class, model front +H (optional)。
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
