Filter Press for sludge dewatering(TM2)
Type: TM2 Membrane Plate Semi-Automatic Type (Plow Type Multi-Time and Segmented Plate-open) Series
Chamber plate / membrane type
Membrane Plate Semi-Automatic Type (Plow Type Multi-Time and Segmented Plate-open) Series

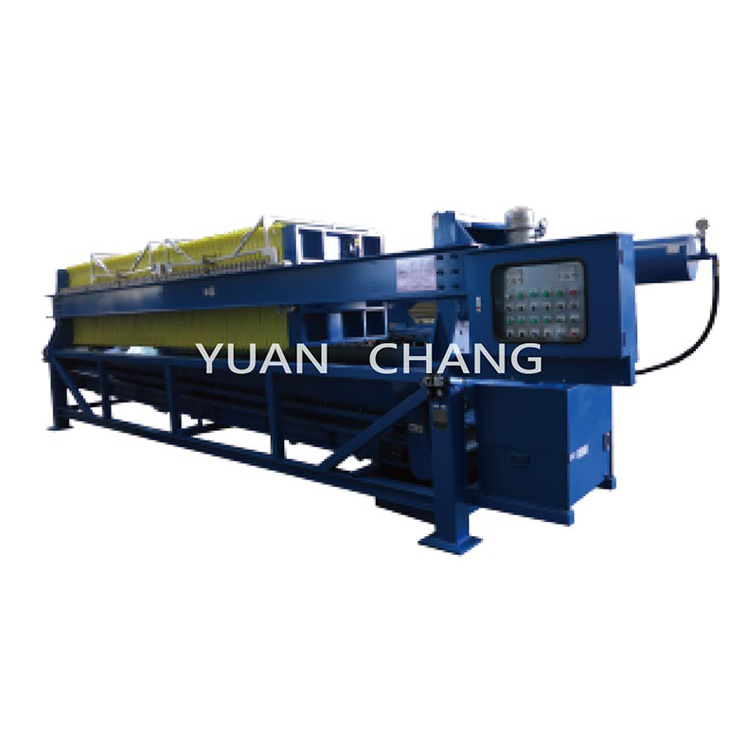

Machine outline diagram
Standard type: Hopper type
Standard specifications (Contact for customized)
| Model |
Filter plate size & quantity (Chamber + Membrane plate type) （mm／piece) |
Filter area(M²) | Treating capacity (Sludge cake volume) (Liter／Lot) | Ref. Machine dimension (Hopper type) (Not included base frame height) L x W x H (mm) | Reference weight (kgs) |
| TM2-63-15-2 |
630 x 15 |
8.4 | 108 | 3150 x 1380 x 2100 | 1610 |
| -21-3 | x 21 | 12.0 | 154 | 3500 x 1380 x 2100 | 1790 |
| -31-3 | x 31 | 18.0 | 231` | 4270 x 1380 x 2230 | 2130 |
| -41-4 | x 41 | 24.0 | 308 | 4920 x 1380 x 2230 | 2470 |
| TM2-80-21-3 | 800 x 21 | 18.2 | 285 | 4060 x 1690 x 2500 | 2830 |
| -31-3 | x 31 | 27.3 | 428 | 5120 x 1690 x 2650 | 3330 |
| -41-4 | x 41 | 36.4 | 570 | 5870 x 1690 x 2650 | 3660 |
| -51-5 | x 51 | 45.5 | 713 | 6490 x 1690 x 2650 | 4030 |
| TM2-100-31-3 | 1000 x 31 | 43.2 | 666 | 5550 x 1950 x 2800 | 5220 |
| -41-5 | x 41 | 57.6 | 888 | 6270 x 1950 x 2800 | 5740 |
| -51-5 | x 51 | 72.0 | 1110 | 7090 x1 950 x 2800 | 6330 |
| -61-6 | x 61 | 86.4 | 1332 | 7820 x 1950 x 2850 | 6890 |
Remarks：
- The conveyor type , Auto filtrate guard type is optional.
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
