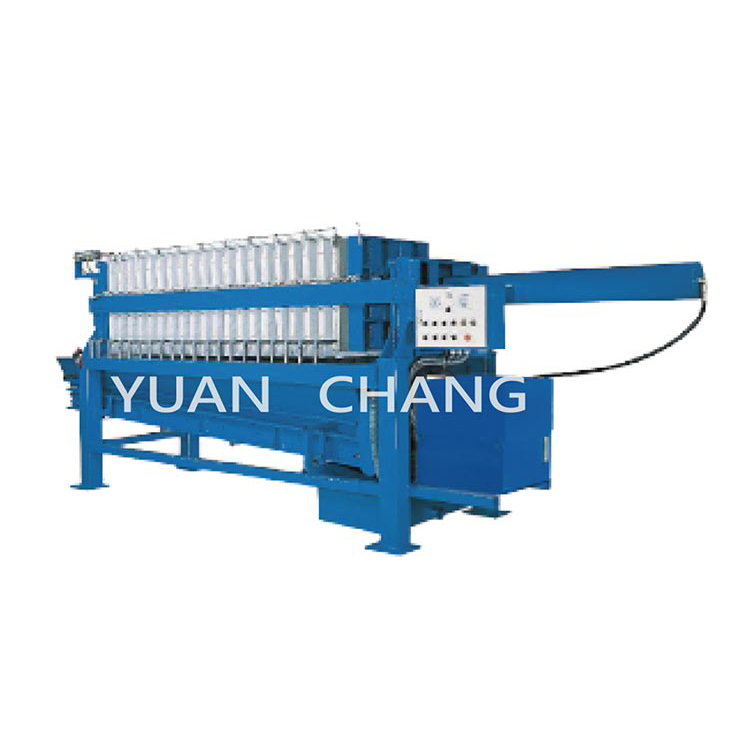

Filter Press for sludge dewatering(TM2 Automatic)
Type: TM2 Plate Automatic Type (Chain Type One Time and Entire Section Plate-open) Series
Chamber plate / membrane type
Membrane Plate Automatic Type (Chain Type One Time and Entire Section Plate-open) Series
Machine outline diagram
Standard type: Hopper type
Standard specifications (Contact for customized)
| Model |
Filter plate size & quantity (Chamber + Membrane plate type) （mm／piece) |
Filter area(M²) | Treating capacity (Sludge cake volume) (Liter／Lot) | Ref. Machine dimension (Hopper type) (Not included base frame height) L x W x H (mm) | Reference weight (kgs) |
| TM2-63-15 |
630 x 15 |
8.4 | 108 | 3820 x 1300 x 2460 | 1680 |
| -21 | x 21 | 12.0 | 154 | 4990 x 1300 x 2460 | 1930 |
| TM2-80-15 | 800 x 15 | 12.7 | 200 | 4870 x 1690 x 2750 | 3100 |
| -21 | x 21 | 18.2 | 285 | 6350 x 1690 x 2750 | 3460 |
| TM2-100-15 | 1000 x 15 | 20.2 | 311 | 5030 x 1900 x 2820 | 4160 |
| -21 | x 21 | 28.8 | 444 | 6340 x 1900 x 2820 | 4730 |
Remarks：
- The conveyor type , Auto filtrate guard type is optional.
- Another 16kg/cm² class, model front +H (optional)。
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
