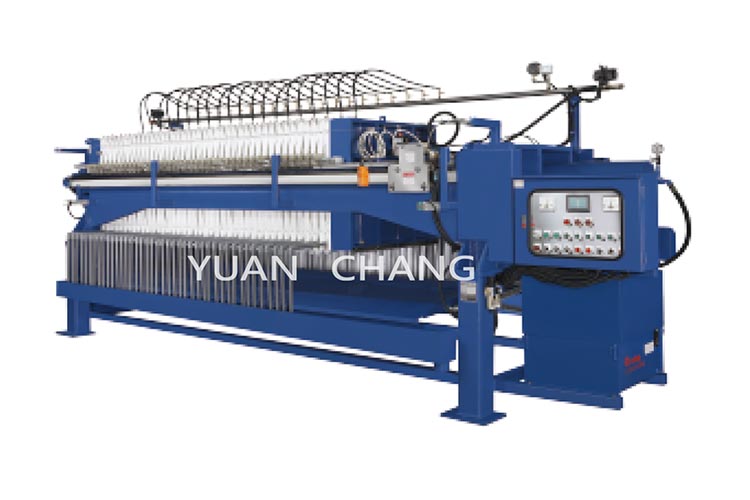

Filter Press for sludge dewatering(TM2B)
Type: TM2B Membrane Plate Automatic Type (Segmented Fast opening) Series
Chamber plate / membrane type
Membrane Plate Automatic Type (Segmented Fast opening) Series
Machine outline diagram
Standard Type:Conveyor Type)
Standard specifications (Contact for customized)
| Model |
Filter plate size & quantity (Chamber + Membrane plate type) （mm／piece) |
Filter area(M²) | Treating capacity (Sludge cake volume) (Liter／Lot) | Ref. Machine dimension (Conveyor type) (Not included base frame height) L x W x H (mm) | Reference weight (kgs) |
| TM2-80-41B5 | 800 x 41 | 36.4 | 570 | 5880 x 1480 x 2800 | 4100 |
| -51B7 | x 51 | 45.5 | 713 | 6500 x 1480 x 2800 | 4590 |
| -61B8 | x 61 | 54.6 | 855 | 7150 x 1480 x 2800 | 5080 |
| TM2-100-41B7 | 1000 x 41 | 57.6 | 888 | 6130 x 1830 x 2820 | 5890 |
| -51B9 | x 51 | 72.0 | 1110 | 6890 x 1830 x 2820 | 6600 |
| -61B10 | x 61 | 86.4 | 1332 | 7960 x 1830 x 2820 | 7250 |
| -71B12 | x 71 | 100.8 | 1554 | 8670 x 1830 x 2820 | 7950 |
| TM2-120-41B8 | 1200 x 41 | 89.6 | 1311 | 6490 x 2350 x 3500 | 9300 |
| -51B10 | x 51 | 112.0 | 1639 | 7270 x 2350 x 3500 | 10260 |
| -61B12 | x 61 | 134.4 | 1967 | 8220 x 2350 x 3500 | 11230 |
| -71B14 | x 71 | 156.8 | 2294 | 8950 x 2350 x 3500 | 12180 |
| TM2-150-41B10 | 1500 x 41 | 144.0 | 2394 | 7070 x 2620 x 4000 | 14520 |
| -51B13 | x 51 | 180.0 | 2993 | 7890 x 2620 x 4000 | 16030 |
| -61B15 | x 61 | 216.0 | 3591 | 8740 x 2620 x 4000 | 17690 |
| -71B18 | x 71 | 252.0 | 4190 | 9560 x 2620 x 4000 | 19240 |
| -81B20 | x 81 | 288.0 | 4788 | 10410 x 2620 x 4000 | 20900 |
Remarks：
- The hopper type , Auto filtrate guard type is optional.
- Another 16kg/cm² class, model front +H (optional)。
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
