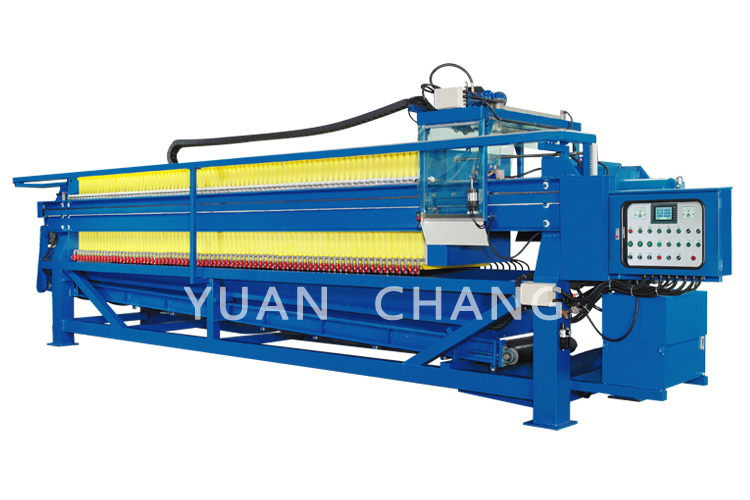

Filter Press for sludge dewatering(TM3)
Type: TM3 Membrane Plate Fully Automatic Type (External Front Cleaning Filter Cloth) Series
Chamber plate / membrane type
Membrane Plate Automatic Type (Plate-open one by one) (Can be upgraded to fully automatic mode) Series
Machine outline diagram
Standard Type:Conveyor Type)
Standard specifications (Contact for customized)
| Model |
Filter plate size & quantity (Chamber + Membrane plate type) （mm／piece) |
Filter area(M²) | Treating capacity (Sludge cake volume) (Liter／Lot) | Ref. Machine dimension (Conveyor type) (Not included base frame height) L x W x H (mm) | Reference weight (kgs) |
| TM3-80-21P | 800 x 21 | 18.2 | 285 | 4630 x 1750 x 3000 | 3360 |
| -31P | x 31 | 27.3 | 428 | 5250 x 1750 x 3000 | 3850 |
| -41P | x 41 | 36.4 | 570 | 6000 x 1750 x 3000 | 4350 |
| -51P | x 51 | 45.5 | 713 | 6630 x 1750 x 3000 | 4850 |
| TM3-100-31P | 1000 x 31 | 43.2 | 666 | 5730 x 2050 x 3100 | 5700 |
| -41P | x 41 | 57.6 | 888 | 6560 x 2050 x 3100 | 6460 |
| -51P | x 51 | 72.0 | 1110 | 7270 x 2050 x 3100 | 7200 |
| -61P | x 61 | 86.4 | 1332 | 8320 x 2050 x 3100 | 7960 |
| TM3-120-41P | 1200 x 41 | 89.6 | 1311 | 6900 x 2560 x 3800 | 9900 |
| -51P | x 51 | 112.0 | 1639 | 7640 x 2560 x 3800 | 11850 |
| -61P | x 61 | 134.4 | 1967 | 8380 x 2560 x 3800 | 13800 |
| -71P | x 71 | 156.8 | 2294 | 9100 x 2560 x 3800 | 15780 |
| TM3-150-41P | 1500 x 41 | 144.0 | 2394 | 7370 x 2750 x 4200 | 15220 |
| -51P | x 51 | 180.0 | 2993 | 8190 x 2750 x 4200 | 16800 |
| -61P | x 61 | 216.0 | 3591 | 9040 x 2750 x 4200 | 18330 |
| -71P | x 71 | 252.0 | 4190 | 9860 x 2750 x 4200 | 19970 |
| TM3-200-51P | 2000 x 51 | 340.0 | 5795 | 9600 x 3400 x 4700 | 37540 |
| -61P | x 61 | 408.0 | 6954 | 10520 x 3400 x 4700 | 40570 |
| -71P | x 71 | 476.0 | 8113 | 11520 x 3400 x 4700 | 43600 |
| -81P | x 81 | 544.0 | 9272 | 12440 x 3400 x 4700 | 46680 |
Remarks：
- The Auto filtrate guard type is optional.
- Another 16kg/cm² class, model front +H (optional)。
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
