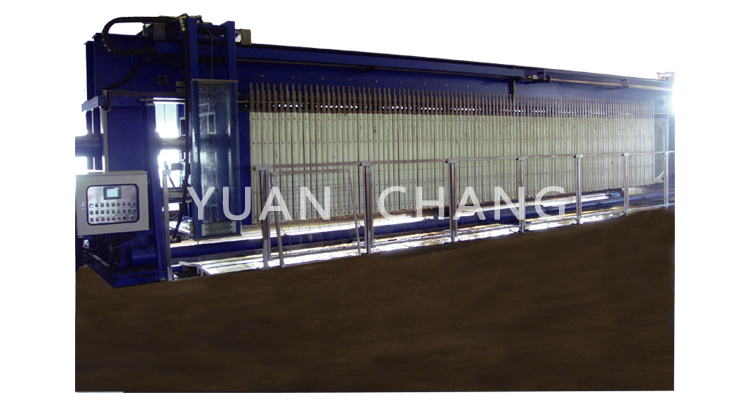

Filter Press for sludge dewatering(TRM)
Type: TRM Super Large Membrane Plate Fully Automatic Type (Overhead Plate Type) Series
Chamber plate / membrane type
Super Large Membrane Plate Fully Automatic Type (Overhead Plate Type) Series
Machine outline diagram
Standard specifications (Contact for customized)
| Model |
Filter plate size & quantity (Chamber + Membrane plate type) （mm／piece) |
Filter area(M²) | Treating capacity (Sludge cake volume) (Liter／Lot) | Ref. Machine dimension (Naked type) (Not included base frame height) L x W x H (mm) | Reference weight (kgs) |
| TRM-120-61A | 1200 x 61 | 134.4 | 2070 | 9300 x 2050 x 2900 | 25900 |
| -81A | x 81 | 179.2 | 2760 | 10800 x 2050 x 2900 | 28400 |
| -101A | x 101 | 224.0 | 3450 | 13400 x 2050 x 2900 | 31300 |
| TRM-150-61A | x 61 | 216.0 | 3780 | 10350 x 2400 x 3400 | 40000 |
| -81A | x 81 | 288.0 | 5040 | 12000 x 2400 x 3400 | 44000 |
| -101A | x 101 | 360.0 | 6300 | 14800 x 2400 x 3400 | 49000 |
| -121A | x 121 | 432.0 | 7560 | 16500 x 2400 x 3400 | 54000 |
| TRM-200-81A | 2000 x 81 | 544.0 | 9760 | 13950 x 2900 x 4050 | 75000 |
| -101A | x 101 | 680.0 | 12200 | 15700 x 2900 x 4050 | 83000 |
| -121A | x 121 | 816.0 | 14640 | 17450 x 2900 x 4050 | 89800 |
Remarks：
- The conveyor type , Auto filtrate guard type is optional.
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
