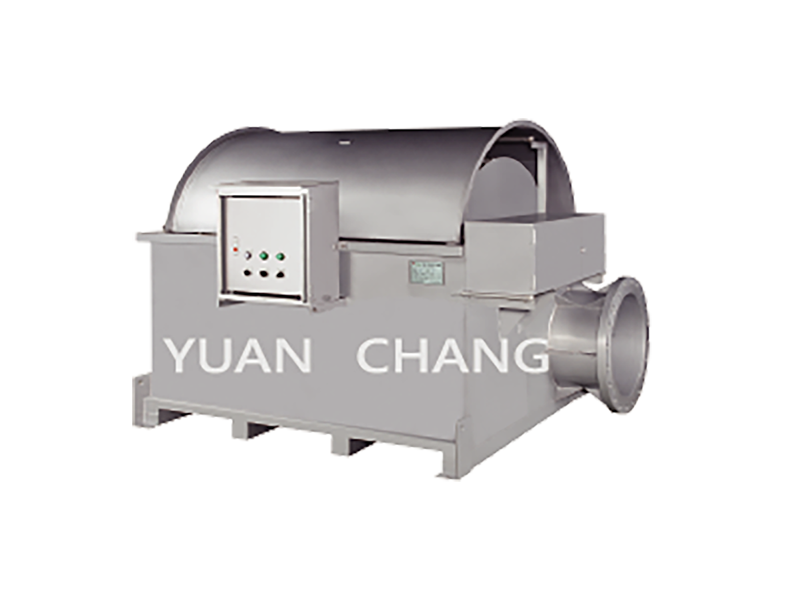

Micro screen filter(DG-80)
Type: DF-80 (inside screen type)
Inside Screen Type
(Aperture :110~2500μm)
Usages:
- Remove suspended solids of fine particles with a particle size of 110 μm or more in waste water.
- The filtration of the secondary treatment sedimentation tank or the pressurized floating tank outflow water can replace the fine filtration of the sand filter bucket to achieve more stringent discharge standards.
- S.S. in the discharged water after industrial wastewater treatment and impurity filtration, removal and recycling.
- Fine suspended solids of three-stage wastewater treatment removes and filters.
- The process of various industries is filtered by water circulation (non-floating substances on liquid surface).
- River water/tap water/rainwater/groundwater impurities are filtered and separated.
- High-density aquaculture water purification and circulation filtration use.
Machine outline diagram
Standard specifications (Contact for customized)
|
|
DF-80 |
| （Capacity (clear water) (depending on the size of the mesh)(m³ /hr) | 50~450 |
| Power usage (HP) |
|
| Standard: Drum drive(no step speed) | 1/2 |
| Optional: Wash pump | Power depending on the size of the mesh |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless steel (SUS316)、other special material |
| Referance dimension(mm) |
|
| L |
2250 |
| W | 1500 |
| H | 1400 |
| Reference weight (kgs) | 630 |
Remarks：
- The above table processing capacity is calculated based on the analysis of the filter
- Washing pump and sewage pump are optional, please contact us separately
- Screen specifications are based on actual needs.
- The amount of treatment should be based on the screen aperture and water pollution.
- The specification is accepted outside the specification, and the company reserves the right to design changes
- Please request the actual installation dimension drawing before ordering
