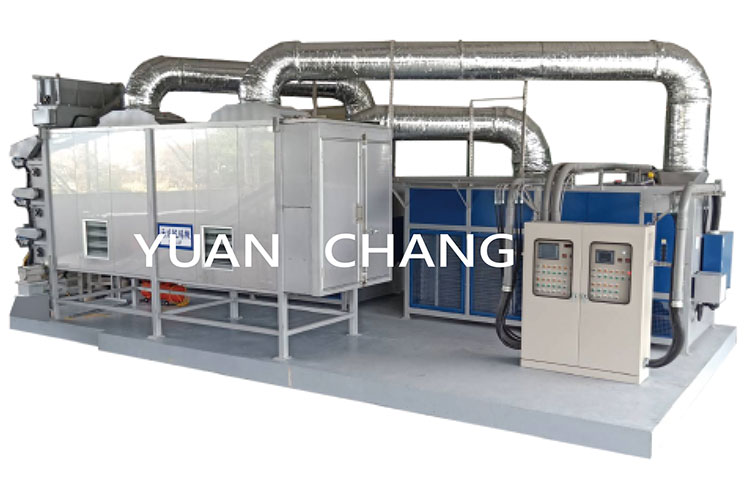

Sludge dryer (CD-2000)
Type: CD-2000 (low temperature dehumidification - continuous treatment)
low temperature dehumidification - continuous treatment
Usages & Features:
- The best drying and reducing system for organic sludge and inorganic sludge
- Dry processing of agricultural products and livestock products (please inquire separately)
- Dry materials in the pharmaceutical, food, chemical and other industries (please contact us separately)
- Widely used in metallurgical additives, chemicals, food, packaging and other fields. * Dry materials in the pharmaceutical, food, chemical and other industries (please contact us separately)
Machine outline diagram
Standard specifications (Contact for customized)
|
Specification / Model |
CD-2000 |
| Capacity L/hr(85%/75%→40%) | 2000 |
| Daily capacity M³/24hr (85%/75%→40%) |
48 |
| Sludge classification | Organic / inorganic |
| Electricity consumption (KWH) / kg |
0.3 ~ 0.55 (water content 75% ~ 85% to 40%，depending on sludge type and moisture content |
| Highest treatable moisture content (%) | 85 (depending on sludge type and moisture content) |
| Drying temperature (℃) | 35 ~ 70 (Depending on sludge type and moisture content) |
| Reference dimension(mm) Main machine |
|
| L |
5200 |
| W | 2400 |
| H | 2700 |
| Reference dimendion (mm) Dry Tank | |
| L | 24000 |
| W | 2500 |
| H | 4400 |
| Numer of mainframe | 8 |
| Space required (m×m) | 26 x 10 |
Remarks：
- The working temperature of the working plant area is 10~42°C.
- The specification is accepted outside the specification, and the company reserves the right to design changes
- Please ask for the actual installation dimension drawing before ordering..
