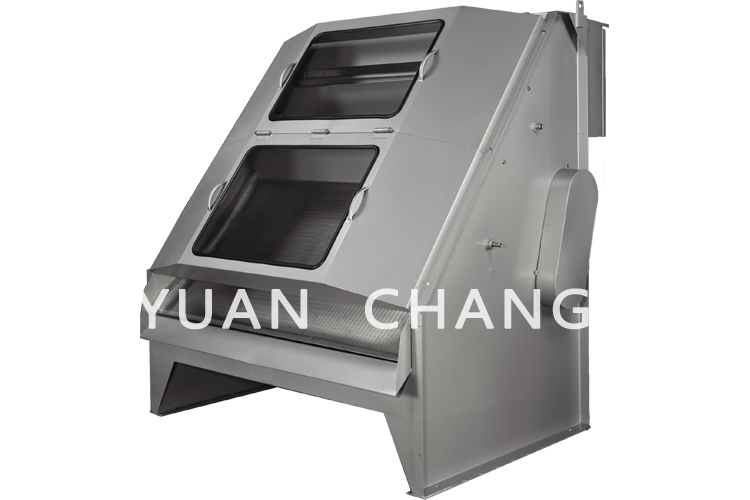

Solid-Liquid Separating Machine(YU-190)
Type: YU-190 (Slant screen)
Slant Screen Type
Usages:
- Hospital, community domestic sewage, urban sewer comprehensive treatment plant, printing and dyeing industry, textile industry, leather industry, paper industry, chemical industry, aquatic product processing industry, food processing industry, meat processing industry, slaughtering industry, wine industry, sugar industry, etc. ... In the first stage of wastewater treatment, the scum and solid matter removal and fouling and solid and liquid separation projects are used.
- The separation and treatment of floating matter and solid matter in the waste water of animal husbandry.
- Recycling and recycling of raw materials in the paper and pulp industry.
- Protect the wastewater treatment equipment (pump) to avoid foreign matter blockage.
Machine outline diagram
Standard specifications (Contact for customized)
|
|
YU-190 |
| Screen slit(spacing)(mm) |
1.0 / 1.5 / 2.0 / 3.0 |
| Capaclty(water) (m³ /hr) |
110 / 130 / 150 / 200 |
| Power usage (HP) |
|
| Standand | Washing drive: 1/2 HP |
| Optional | Washing pump: Power demand will vary depending on the spacing of the screen Screw dawatem conveyor(Applicable to livestock, fibrous sludge):3HP |
| Material |
|
| Standard |
Stainless steel (SUS304) |
| Optional |
Stainless steel (SUS316), Other special materials |
| Reference dimension (mm) |
|
| Length L |
1600 |
| Width W |
2150 |
| Height H |
1960 |
| Reference weight (kgs) |
530 |
Remarks：
- Please inquire separately for optional equipment.
- The above listed data is subject to the on-site process and water quality conditions
- Please contact us separately for inquiries regarding the wedge wire screen sizes selected for different applications (below 0.3 mm or above 3.0 mm) and their processing capacities.
- Please choose between low pressure type/high pressure type.
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering.
