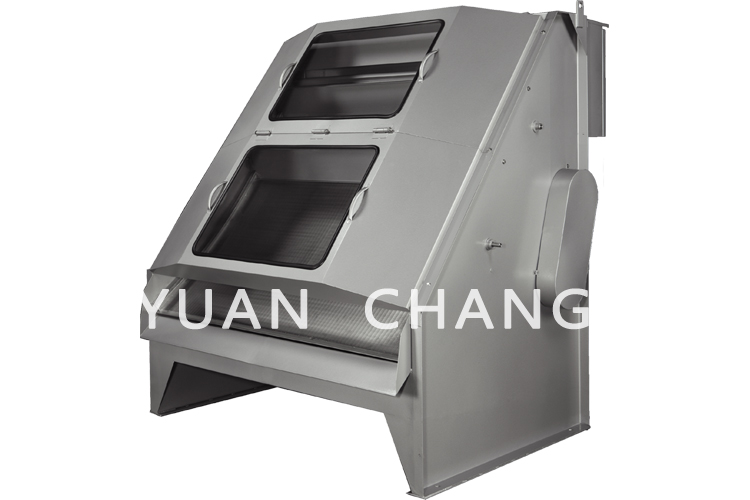

Wastewater Solid-Liquid Separator(YU Series)

(Slant screen)

Spec.			YU-70	YU-130	YU-190
Spec.			Model
Capacity(water) (m³ /hr)	Screen slit(spacing)(mm)	1.0	33	70	110
		1.5	42	90	130
		2.0	48	100	150
		3.0	60	130	200
Power usage (HP)	Standard	Washing Drive	1/2	1/2	1/2
	Optional	Washing pump	Power demand will vary depending on the spacing of the screen
	Optional	Screw Dewatering Conveyor (suitable for livestock waste and fibrous sludge)	2	2	3
Machine material		Standard	Stainless Steel (SUS304)
Machine material		Optional	Stainless steel (SUS316) 、Other special materials
Reference machine dimensions(mm)		L	1600	1600	1600
		W	1050	1550	2150
		H	1960	1960	1960
Reference weight (kgs)			270	380	530
