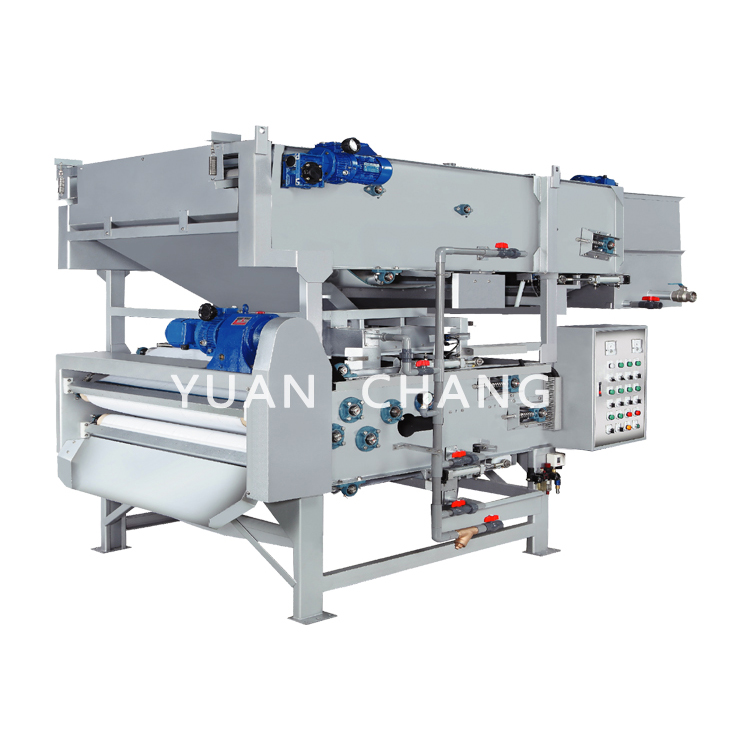

Belt Filter Presses (TA3-750)
Type: TA3-750 (Conditioning + gravity filter belt thickening + double filter belt) → triple filter belt
S.S. low / medium concentration
Conditioning + gravity filter belt thickening + double filter belt) → triple filter belt

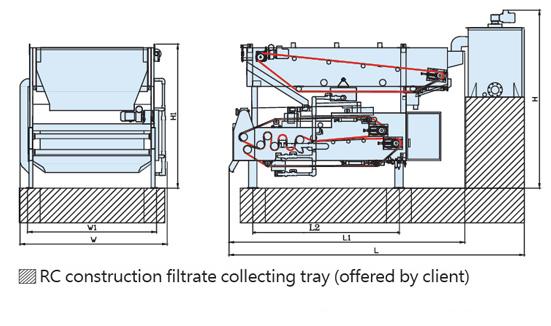

Machine outline diagram
Standard specifications (Contact for customized)
|
|
TA3-750 |
| Belt width (mm) | 750 |
| Low consistency (S.S 0.4~0.8%) |
|
| Capacity (m³ /hr) | 5.5~9.0 |
| Absolute dryness (kg/hr) | 22~54 |
| Medium concentration (S.S 0.8~1.5%) | |
| Capacity (m³ /hr) | 4.5-7.0 |
| Absolute dryness D.S. (kg/hr) | 36~83 |
| Power usage (HP) |
|
| Belt drive(no step change) | 1/2 |
| Conditioning mixer | 1/2 |
| Belt thickener(no step speed) | 1/2 |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless steel (SUS316/316L) |
| Referance dimension(mm) |
|
| L |
3650 |
| W | 1400 |
| H | 2600 |
| Reference weight (kgs) | 1010 |
Remarks：
- TA3 series models are not equipped with a total drainage tray under the filtrate.
- TA3-1500L and above models are equipped with static mixing tube as standard equipment.
- The amount of treatment, absolute dryness, and moisture content of sludge cake (about 65 ~ 85%) all depend on the type, concentration and characteristics of sludge.
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
- The washing pump (optional) needs to provide the best water pressure between 4.5~6.5kg/cm².
