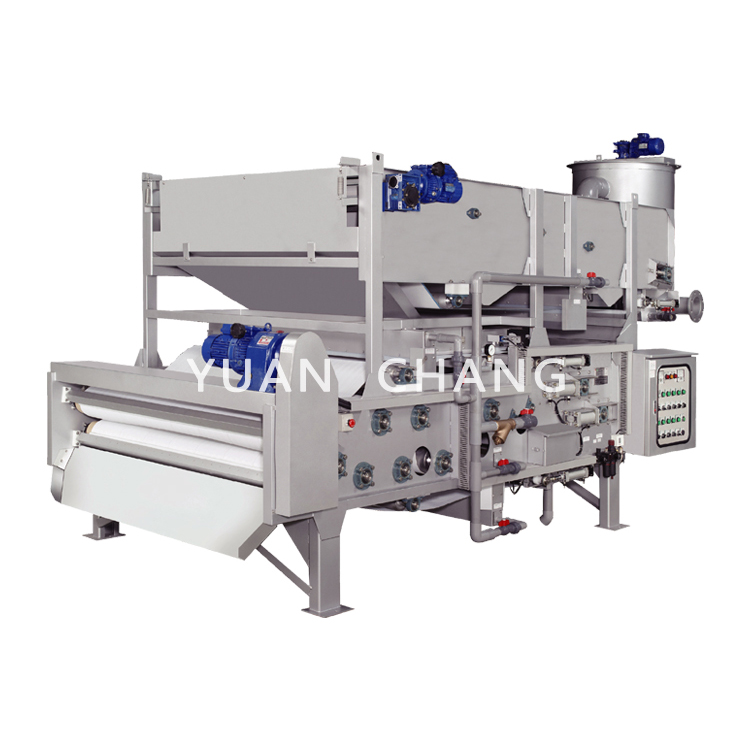

Belt Filter Presses (TB3-1500L)
Type: TB3-1500L (Conditioning + gravity filter belt thickening + double filter belt) →Triple filter belt
S.S. low / medium concentration
Conditioning + gravity filter belt thickening + double filter belt) → triple filter belt
- Sludge dewatering treatment for various industrial wastewater.
- Sludge dewatering treatment for slaughterhouse and livestock farming.
- Sludge dewatering treatment for municipal sewage, night soil, and water treatment plants.
Machine outline diagram
Standard specifications (Contact for customized)
|
|
TB3-1500L |
| Belt width (mm) | 1500 |
| Low consistency (S.S 0.4~0.8%) |
|
| Capacity (m³ /hr) | 25~33 |
| Absolute dryness (kg/hr) | 100~198 |
| Medium concentration (S.S 0.8~1.5%) | |
| Capacity (m³ /hr) | 20.5-25 |
| Absolute dryness D.S. (kg/hr) | 160~300 |
| Power usage (HP) |
|
| Belt drive(no step change) | 1 |
| Conditioning mixer | 1/2 |
| Belt thickener(no step speed) | 3/4 |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless steel (SUS316/316L) |
| Referance dimension(mm) |
|
| L |
5100 |
| W | 2150 |
| H | 2650 |
| Reference weight (kgs) | 2150 |
Wash Water and Filtered Water Recycling and Reuse System (Optional Accessory):
- After filtration, the water can achieve recycling and reuse by adding a suitable amount of clean water as needed.
- This system effectively reduces the costs associated with the re-treatment of return water.
- It thoroughly addresses the high water consumption issue previously caused by cleaning filter belts in belt filter presses.
Raised Fiber Filter Belt (Optional Accessory)
- The coarse mesh base fabric features a high open area, providing excellent water permeability.
- The high friction of the raised fibers effectively blocks sludge, gathers it, and prevents side leakage.
- This accessory delivers outstanding dewatering performance for challenging sludge types, including oily sludge, sticky sludge, and activated sludge.
Remarks：
- TB-2000 & TB3 full range of models are not equipped with the total drain pan under the filtrate.
- TB3 full range of models with static mixing tube is standard.
- The amount of treatment, absolute dryness, and moisture content of sludge cake (about 65 ~ 85%) all depend on the type, concentration and characteristics of sludge.
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
- The washing pump (optional) needs to provide the best water pressure between 4.5~6.5kg/cm².
